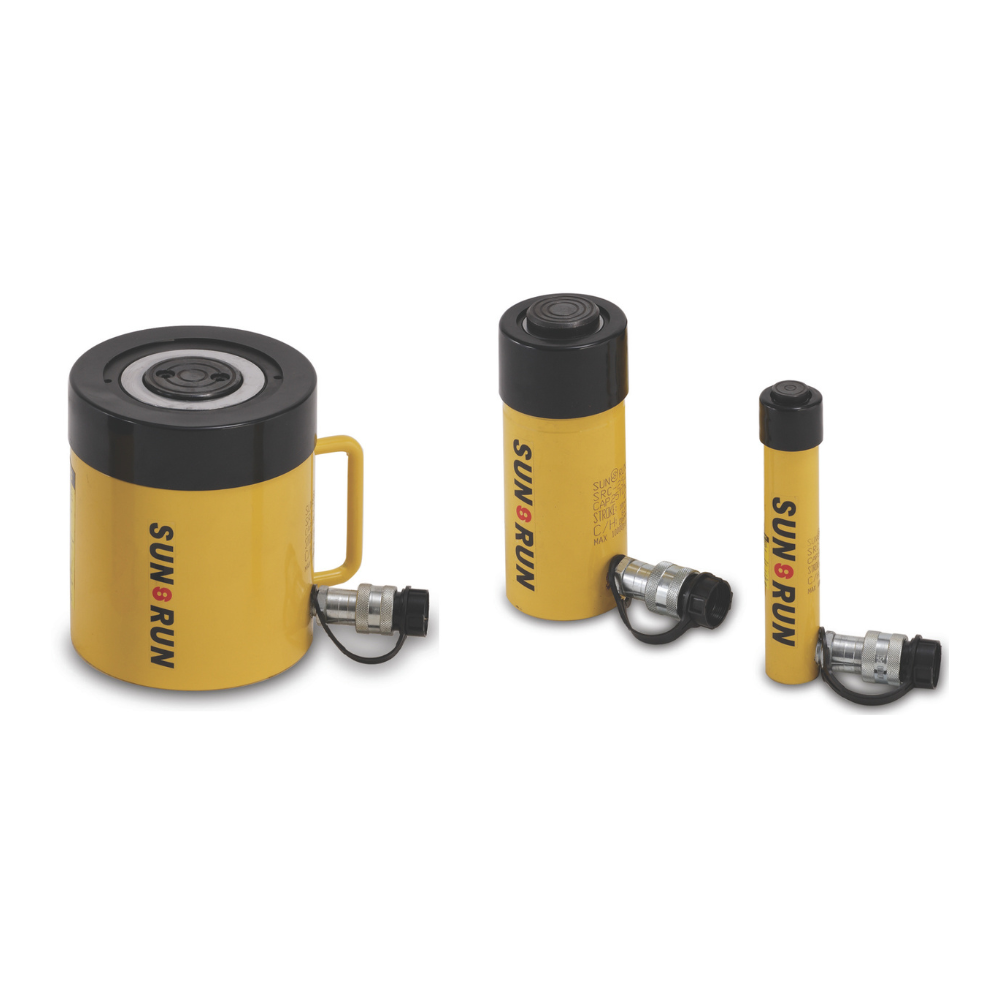

SUN RUN RSC-756 Hydraulic Cylinder Cap 75ton Stroke 156mm
57 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-756 Hydraulic Cylinder 75 ton, stroke 156 mm, single-acting dengan pelindung anti karat dan wiper seal. Ideal untuk aplikasi industri berat, lengkap dengan coupler & dust cap.
- Model Number: RSC-756 Sun Run
- Cylinder Capacity: 75 ton (718 kN)
- Stroke: 156 mm
- Cylinder Effective Area: 102.6 cm²
- Oil Capacity: 1601 cm³
- Collapsed Height: 285 mm
- Extended Height: 441 mm
- Outside Diameter: 146 mm
- Cylinder Bore Diameter: 114.3 mm
- Plunger Diameter: 95.2 mm
- Base to Advance Port: 30 mm
- Saddle Diameter: 71 mm
- Saddle Protrusion from Plunger: 5 mm
- Plunger Internal Thread: in
- Plunger Thread Length: mm
- Collar Thread: 5³/₄”-12 in
- Collar Thread Length: 44 mm
- Bolt Circle: –
- Thread: –
- Thread Depth: –
- Features:
- Single-Acting, Spring Return Collar Thread Cylinders
- Equipped with collar thread and base holes (on most models) for greater flexibility in mounting onto fixtures.
- Equipped with inner plunger thread (5 ton to 30 ton) for greater flexibility in designing fixtures.
- Bronze alloy bearing on plunger to minimize scoring due to off-center load.
- Hard chrome-plated plunger to resist wear and corrosion.
- Inner barrel walls are hard chrome-plated to resist wear and corrosion in high humidity environments.
- Equipped with wiper seals to prevent ingress of dirt.
- Equipped with stop-ring to prevent plunger blow-out and withstand full “Dead-End” load.
- Powder-coated finish for greater corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Comes with SQB-3/8UF female coupler & dust cap.
