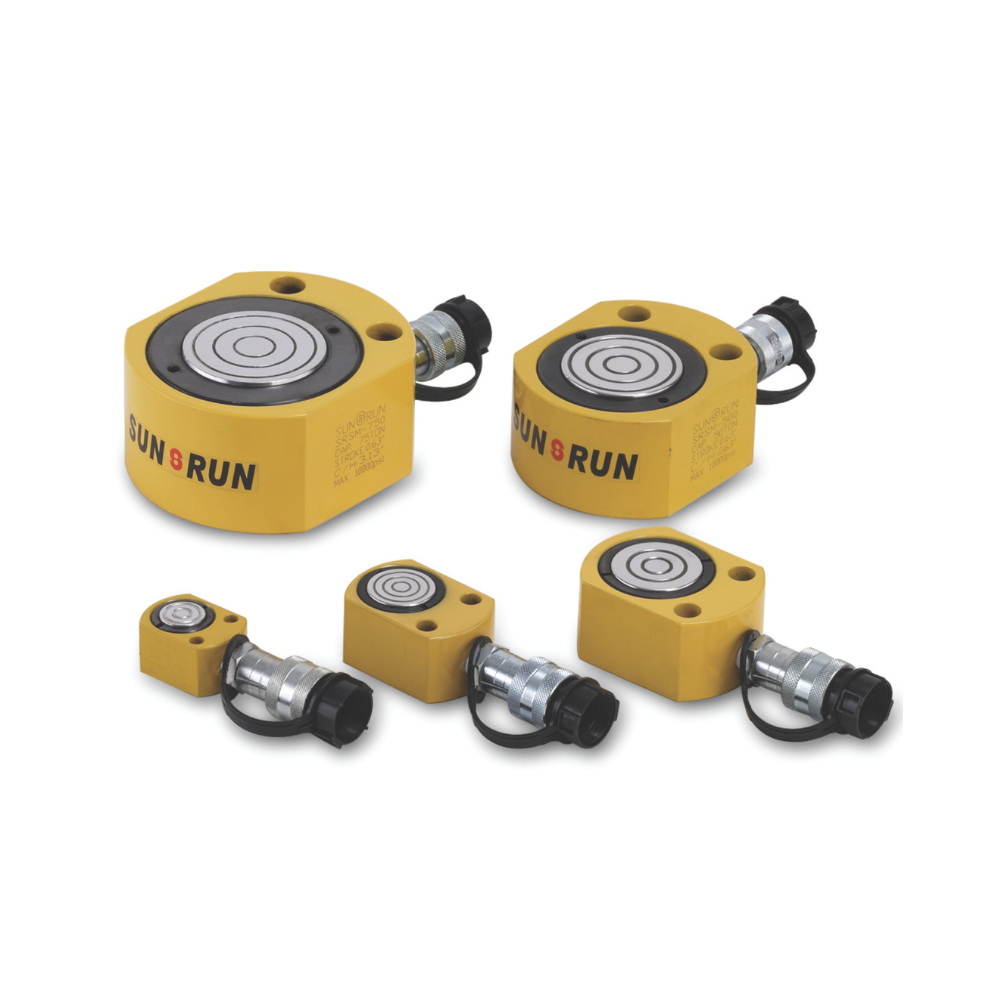

SUN RUN RSSM-300 Hydraulic Flat Cylinder 30 Ton hadir dengan desain tipis dan kuat untuk ruang sempit. Tangguh, presisi tinggi, anti karat, lengkap coupler, ideal untuk aplikasi industri berat.
- Model: RSSM-300 Sun Run
- Cylinder Capacity: 30 ton (295 kN)
- Stroke: 13 mm
- Cylinder Effective Area: 42.1 cm²
- Oil Capacity: 55 cm³
- Collapsed Height: 58 mm
- Extended Height: 71 mm
- Outside Diameter: 117 × 95 mm
- Cylinder Bore Diameter: 73.2 mm
- Plunger Diameter: 63.4 mm
- Base to Adv. Port: 19 mm
- Plunger Protrusion from Base: 2 mm
- Plunger to Base: 47 mm
- Plunger to Mounting Hole: 44 mm
- Hole Pitch: 52.3 mm
- Hole Diameter: 10.0 mm
- Counter Bore Diameter: 15.9 mm
- Counter Bore Depth: 11.2 mm
- Features (Single-Acting, Low Height, Flat Cylinders)
- Compact and flat design for use in narrow spaces.
- Mounting holes allow easy fixturing.
- Grooved plunger ends require no saddle.
- Hard chrome-plated plunger and inner barrel for wear and corrosion resistance.
- Maximum-sized springs speed piston return and extend spring life.
- Plunger wiper reduces contaminants.
- Stop ring provides piston blow-out protection.
- Powder-coated finish increases corrosion and rust resistance.
- Comes with SQB-3/8UF female coupler and dust cap.
