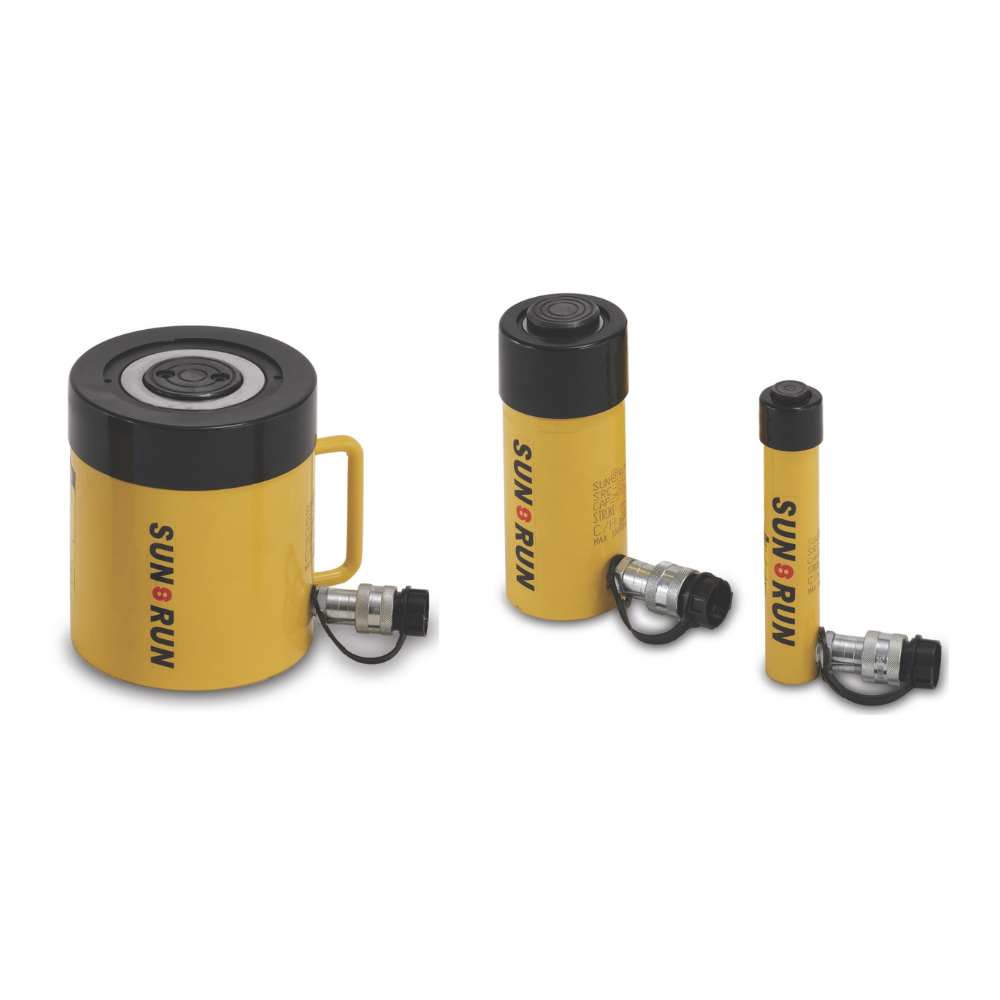

SUN RUN RSC-51 adalah hydraulic cylinder 5 ton dengan stroke 25mm, desain compact, kuat, dan presisi. Ideal untuk lifting, maintenance, serta kebutuhan industri.
- Cylinder Capacity : 5ton (45kN)
- Stroke : 25mm
- Cylinder Effective Area : 6.5cm²
- Oil Capacity : 16cm³
- Collapsed Height : 110mm
- Extended Height : 135mm
- Outside Diam. : 38mm
- Cylinder Bore Diam. : 28.7mm
- Plunger Diam. : 25.4mm
- Base to Adv. Port : 19mm
- Saddle Diam. : 25mm
- Saddle Protrusion from Plngr. : 6mm
- Plunger Internal Thread : 3/4″-16in
- Plunger Thread Length : 14mm
- Collar Thread : 1½”-16in
- Collar Thread Length : 28mm
- Bolt Circle : 25mm
- Thread : 1/4″-20UN in
- Thread Depth : 14mm
- Single-Acting, Spring Return Collar Thread Cylinders
- Equipped with collar thread and base holes (on most models) for greater flexibility in mounting onto fixtures (see page 16 for details).
- Equipped with inner plunger thread (5 ton to 30 ton) for greater flexibility in designing fixtures.
- Bronze alloy bearing on plunger to minimize scoring due to off-centre load.
- Hard chrome plated plunger to resist wear and corrosion.
- Inner barrel wall is hard chrome plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent ingress of dirt.
- Equipped with stop-ring to prevent plunger blow-out and withstand full “Dead-End” load.
- Powder-coated finish for greater corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Comes with SQB-3/8UF female coupler & dust cap.
