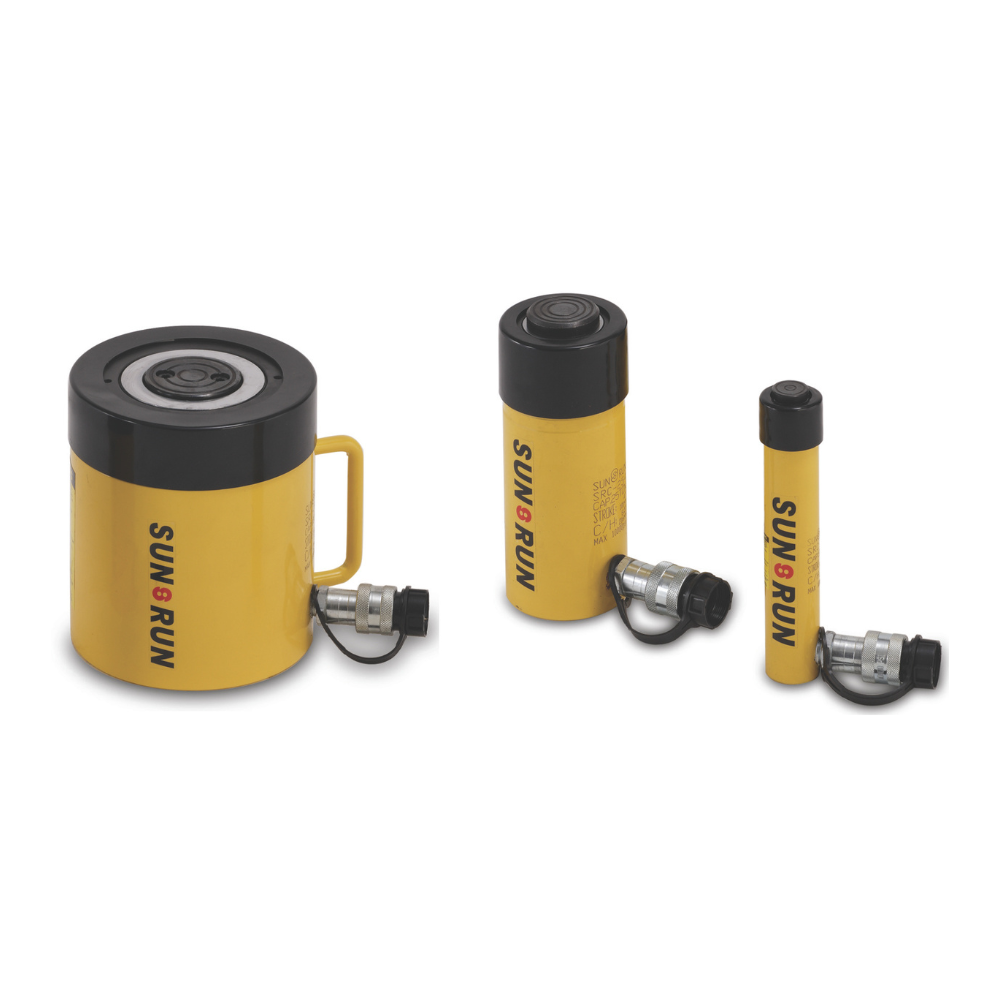

Hydraulic cylinder SUN RUN RSC-258 kapasitas 25 ton dengan stroke 210 mm. Konstruksi kokoh, plunger hard chrome tahan aus dan korosi, ideal untuk aplikasi industri berat dan presisi.
- Model Number: RSC-258 Sun Run
- Cylinder Capacity: 25 ton (232 kN)
- Stroke: 210 mm
- Cylinder Effective Area: 33.2 cm²
- Oil Capacity: 697 cm³
- Collapsed Height: 323 mm
- Extended Height: 533 mm
- Outside Diameter: 85 mm
- Cylinder Bore Diameter: 65.0 mm
- Plunger Diameter: 57.2 mm
- Base to Advance Port: 25 mm
- Saddle Diameter: 50 mm
- Saddle Protrusion from Plunger: 10 mm
- Plunger Internal Thread: 1 1/2″-16 UN
- Plunger Thread Length: 25 mm
- Collar Thread: 3 5/16″-12 UN
- Collar Thread Length: 49 mm
- Bolt Circle: 58 mm
- Thread: 1/2″-13 UN
- Thread Depth: 19 mm
- Single-Acting, Spring Return Collar Thread Cylinder
- Equipped with collar thread and base holes (on most models) for greater flexibility in mounting to fixtures.
- Equipped with internal plunger thread (5 ton to 30 ton) for greater flexibility in fixture design.
- Bronze alloy bearing on plunger to minimize scoring due to off-center loads.
- Hard chrome plated plunger to resist wear and corrosion.
- Inner barrel walls are hard chrome plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent dirt ingress.
- Equipped with a stop ring to prevent plunger blow-out and withstand full “dead-end” load.
- Powder-coated finish for enhanced corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Come with SQB-3/8UF female coupler & dust cap.
