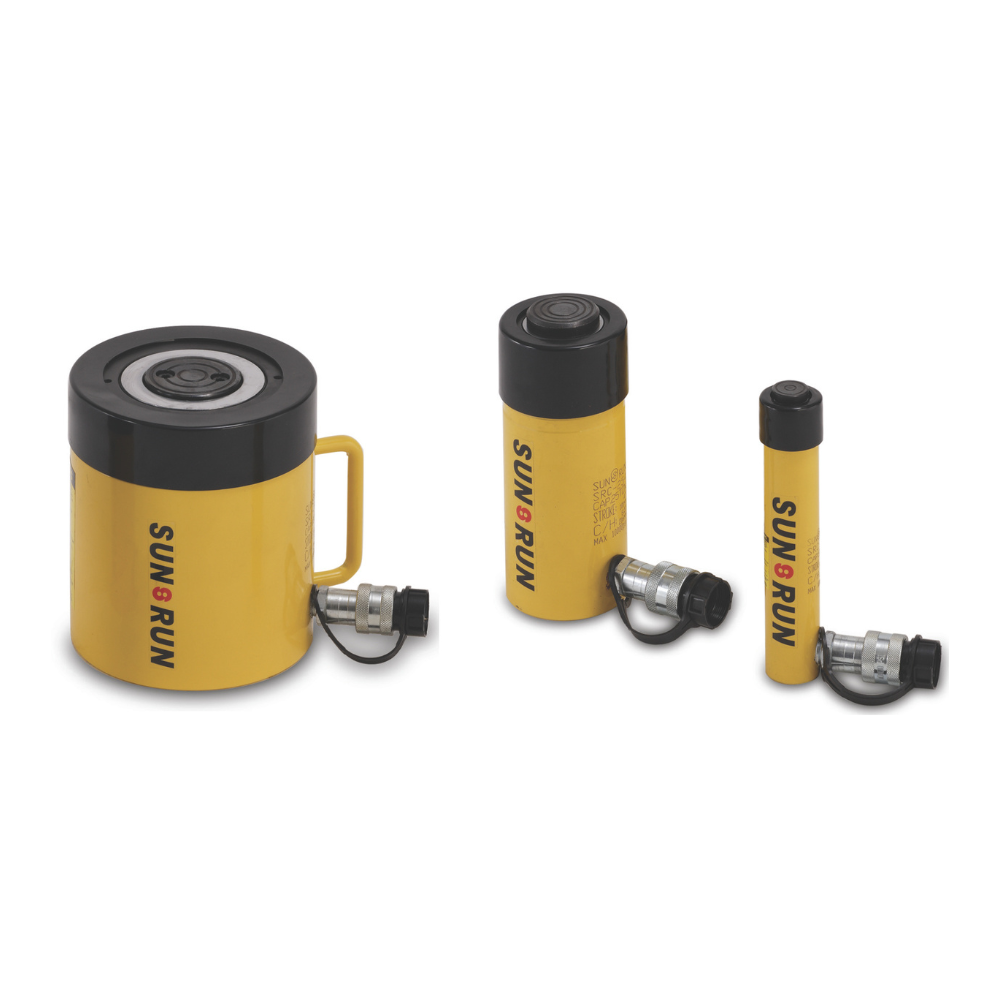

Name: SUN RUN RSC-152 Hydraulic Cylinder Cap 15T Stroke 51mm
Brand: Sun Run
SKU: RSC-152
Price: 99 IDR
Availability: InStock

Model Number: RSC-152 Sun Run
Cylinder Capacity: 15 ton (142 kN)
Stroke: 51 mm
Cylinder Effective Area: 20.3 cm²
Oil Capacity: 104 cm³
Collapsed Height: 149 mm
Extended Height: 200 mm
Outside Diameter: 69 mm
Cylinder Bore Diameter: 50.8 mm
Plunger Diameter: 41.4 mm
Base to Adv. Port: 19 mm
Saddle Diameter: 38 mm
Saddle Protrusion from Plunger: 9 mm
Plunger Internal Thread: 1″–8 in
Plunger Thread Length: 25 mm
Collar Thread: 2³/₄”–16 in
Collar Thread Length: 30 mm
Bolt Circle: 47 mm
Thread: 3/8″–16 UN
Thread Depth: 12 mm
Single-Acting, Spring Return Collar Thread Cylinders:
Equipped with collar thread and base holes (on most models) for greater mounting flexibility.
Equipped with inner plunger thread (5 ton to 30 ton) for flexible fixture design.
Bronze alloy bearing reduces scoring from off-centre loads.
Hard chrome plated plunger for wear and corrosion resistance.
Inner barrel wall hard chrome plated for added corrosion resistance in humid environments.
Wiper seals to prevent dirt ingress.
Stop-ring to prevent plunger blow-out and withstand full “Dead-End” load.
Powder-coated finish for enhanced corrosion protection.
Plastic cap included to protect collar threads.
Come with SQB-3/8UF female coupler & dust cap.
