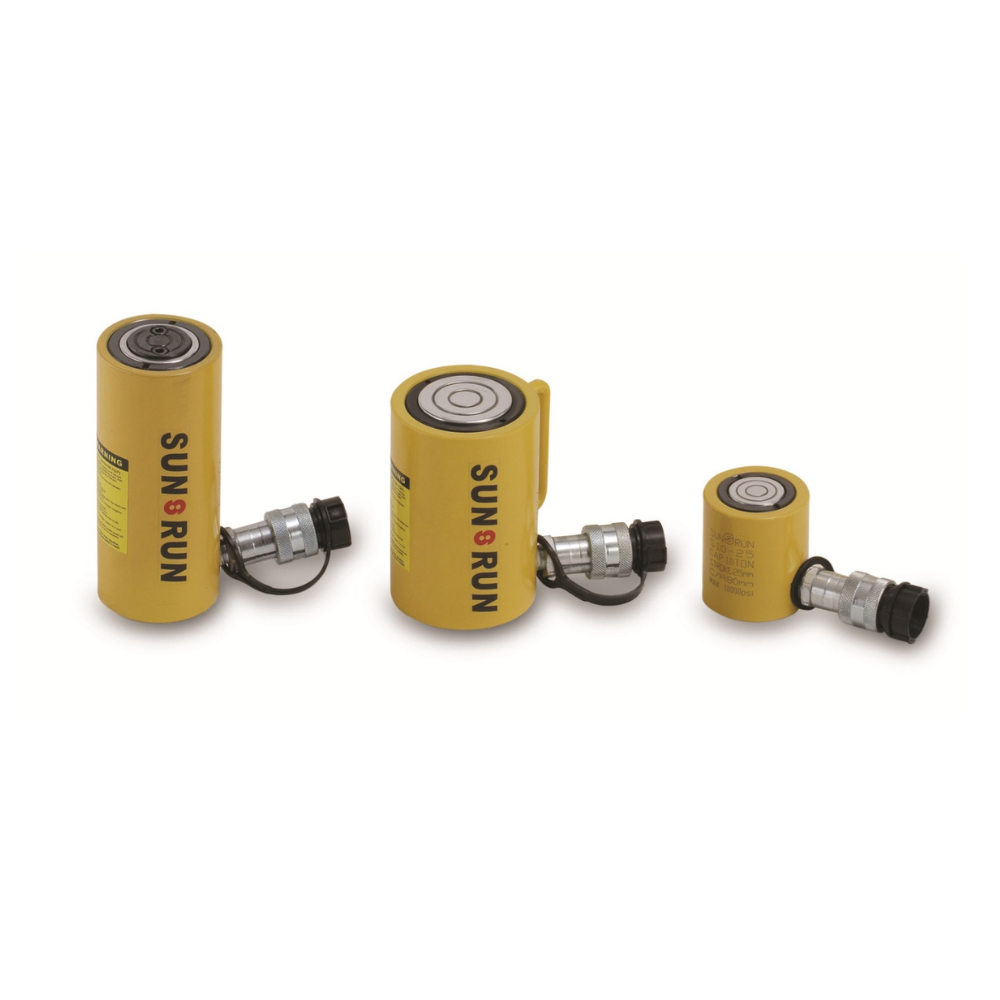

SUN RUN S Series S50-125 Hydraulic Cylinder Cap 50ton Stroke 125mm

Name: SUN RUN S Series S50-125 Hydraulic Cylinder Cap 50ton Stroke 125mm
Brand: Sun Run
SKU: S50-125
Price: 99 IDR
Availability: InStock

46 orang sedang melihat produk ini

Harga aslinya adalah: Rp100.Harga saat ini adalah: Rp99.

Hydraulic Cylinder SUN RUN S Series S50-125 berkapasitas 50 ton dengan stroke 125mm. Kuat, presisi, tahan korosi, cocok untuk aplikasi industri berat dan pekerjaan angkat profesional.

Download PDF

MINTA PENAWARAN

Add to Wishlist

Spesifikasi SUN RUN S Series S50-125 Hydraulic Cylinder Cap 50ton Stroke 125mm

Model Number: S50-125 Sun Run
Cylinder Capacity: 50 ton (498 kN)
Stroke: 125.0 mm
Effective Area: 71.21 cm²
Oil Capacity: 890.1 cm³
Collapsed Height: 240.0 mm
Extended Height: 365.0 mm
Outside Diameter: 127.0 mm
Cylinder Bore Diameter: 95.25 mm
Plunger Diameter: 79.50 mm
Base to Advance Port: 32.0 mm
Saddle Diameter: 71.0 mm
Single-Acting Cylinders – General Features
Designed for use in all positions.
Hard chrome-plated plunger and inner barrel resist wear and corrosion, providing a tighter seal and extended cylinder life.
Maximum-sized springs ensure fast piston return and increased spring life.
Special soft ring reduces wear caused by off-center loads.
Plunger wiper minimizes contamination.
Stop ring provides piston blow-out protection.
Powder-coated finish for enhanced corrosion resistance and anti-rust protection.
All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
