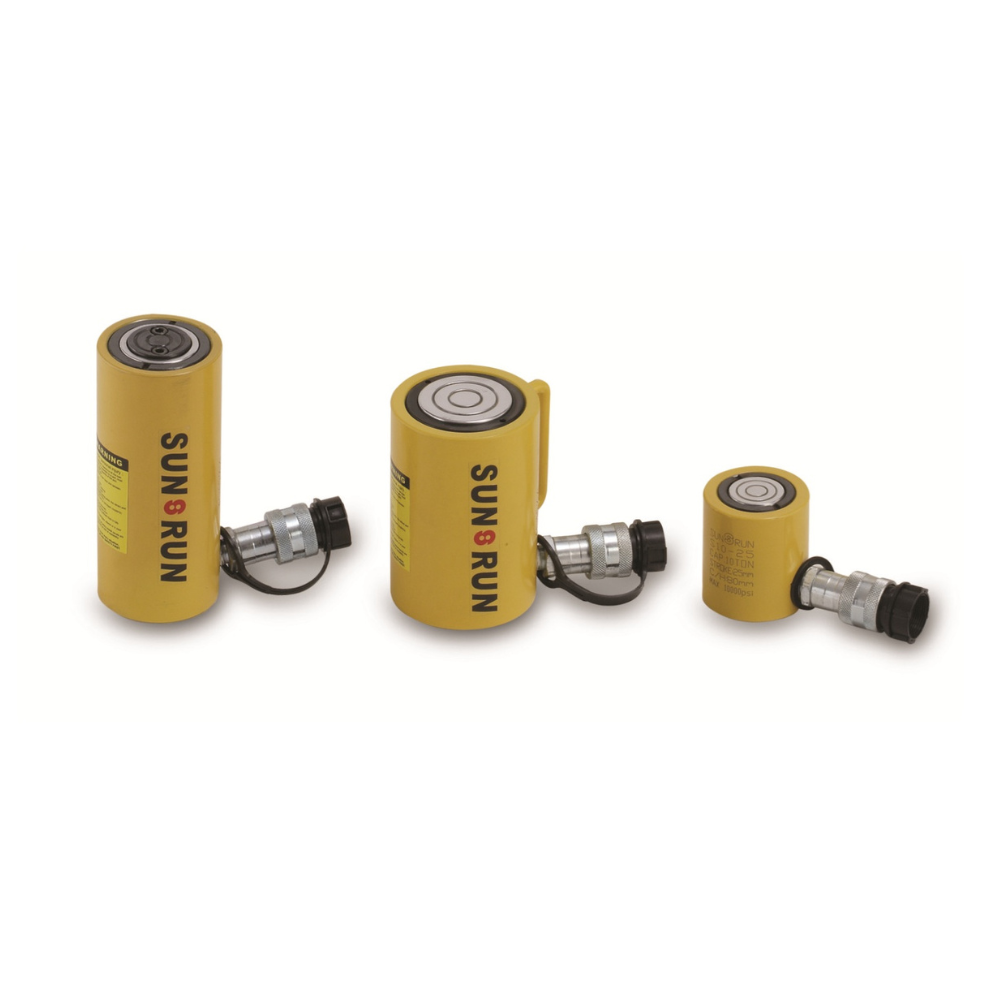

SUN RUN S Series S20-100 Hydraulic Cylinder Cap 20 ton dengan stroke 100 mm, desain kokoh, tahan korosi, presisi tinggi, cocok untuk aplikasi industri berat dan profesional.
- Model Number: S20-100 Sun Run
- Cylinder Capacity: 20 ton (198 kN)
- Stroke: 100.0 mm
- Effective Area: 28.26 cm²
- Oil Capacity: 281.6 cm³
- Collapsed Height: 185.0 mm
- Extended Height: 285.0 mm
- Outside Diameter: 79.0 mm
- Cylinder Bore Diameter: 60.00 mm
- Plunger Diameter: 50.00 mm
- Base to Advance Port: 22.0 mm
- Saddle Diameter: 40 mm
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and barrel interior resist wear and corrosion, ensuring tighter sealing and extended cylinder life.
- Maximum-sized springs provide faster piston return and longer spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for increased corrosion resistance and rust prevention.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
