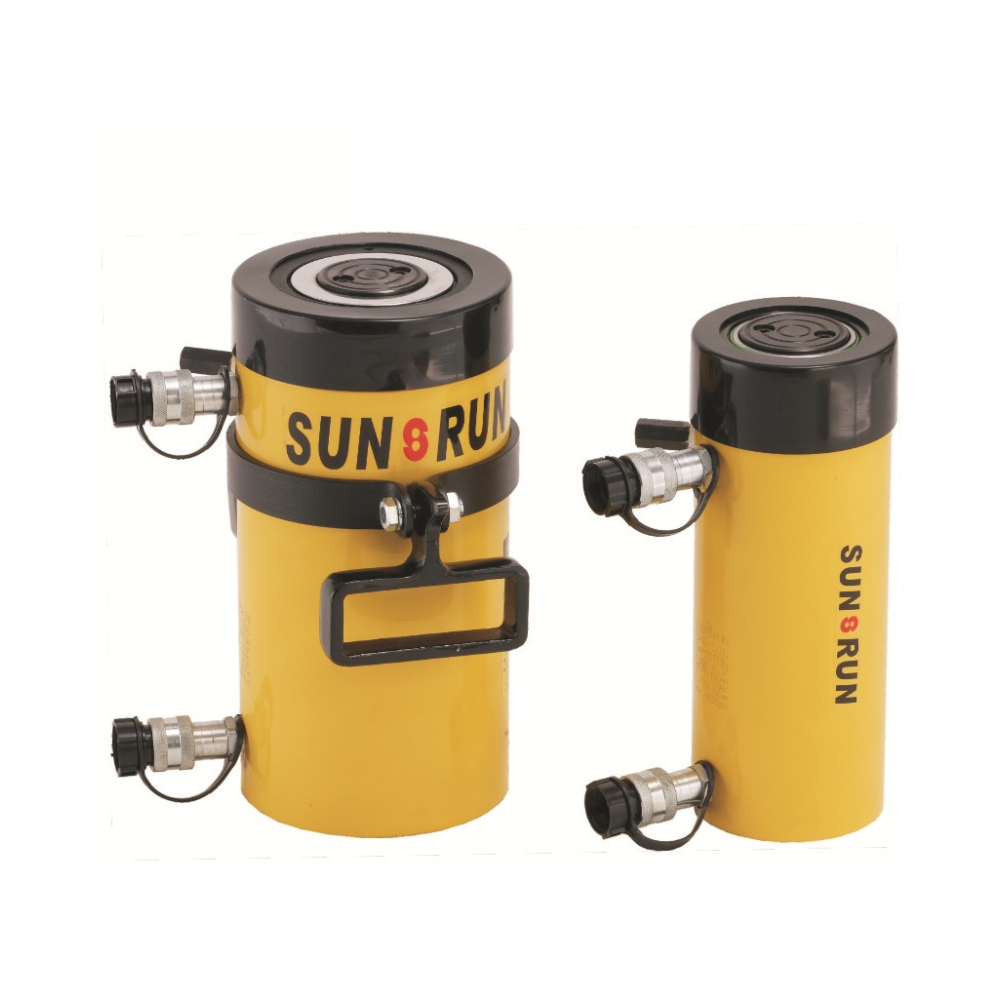

Hydraulic cylinder double-acting 30 ton dengan stroke 368 mm, kuat untuk push & pull. Presisi tinggi, tahan korosi, ideal untuk konstruksi berat, shipyard, dan industri tambang.
- Model: RSR-3014 Sun Run
- Cylinder Capacity: 30 ton (295 kN)
- Stroke: 368 mm
- Max. Cylinder Capacity (Push): 295 kN
- Max. Cylinder Capacity (Pull): 133 kN
- Cylinder Effective Area (Push): 42.1 cm²
- Cylinder Effective Area (Pull): 19.1 cm²
- Oil Capacity (Push): 1549 cm³
- Oil Capacity (Pull): 703 cm³
- Collapsed Height: 549 mm
- Extended Height: 917 mm
- Outside Diameter: 101 mm
- Cylinder Bore Diameter: 73.2 mm
- Plunger Diameter: 54.1 mm
- Base to Advance Port: 57 mm
- Top to Retract Port: 81 mm
- Saddle Diameter: 50 mm
- Saddle Protrusion from Plunger: 10 mm
- Plunger Internal Thread: 1¹/²”-16 in
- Plunger Thread Length: 25 mm
- Collar Thread: 3⁵/¹⁶”-12 in
- Collar Thread Length: 49 mm
- Bolt Circle Diameter: – mm
- Thread: – in
- Thread Depth: – mm
- Double-Acting Cylinders
- Double-acting design allows both pull and push forces.
- Relief valves protect against over-pressurizing.
- Collar threads, plunger threads, and base mounting holes provide easy fixturing (see chart).
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring provides piston blow-out protection.
- Powder-coated finish increases corrosion resistance and prevents rust.
- Comes with SQB-3/8UF female coupler & dust cap.
- RSR series cylinders are ideal for bridge lifting, building reconstruction, shipyards, utilities, and mining equipment maintenance.
- As heavy loads require power and precise positioning, RSR series are the best solution.
