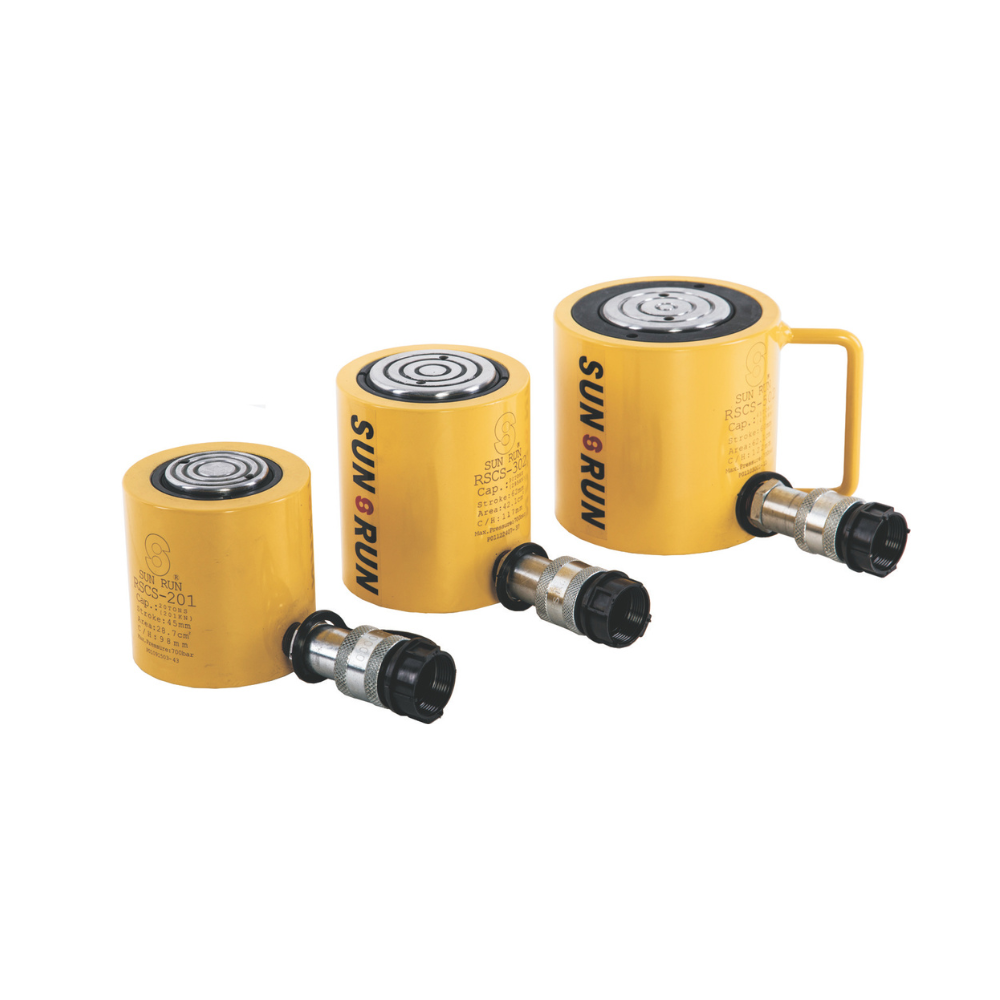

SUN RUN RSCS-201 Hydraulic Cylinder Cap 20ton Stroke 45mm
53 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSCS-201 Hydraulic Cylinder 20 ton, stroke 45mm. Low-profile, durable, chrome-plated plunger, ideal for confined spaces. Complete with coupler & dust cap.
- Model Number: RSCS-201 Sun Run
- Cylinder Capacity: 20 ton (201 kN)
- Stroke: 45 mm
- Cylinder Effective Area: 28.7 cm²
- Oil Capacity: 129 cm³
- Collapsed Height: 98 mm
- Extended Height: 143 mm
- Outside Diameter: 92 mm
- Cylinder Bore Diameter: 60.5 mm
- Plunger Diameter: 50.8 mm
- Base to Advance Port: 17.5 mm
- Plunger Protrusion from Base: 3 mm
- Thread: M5 mm
- Thread Depth: 8 mm
- Bolt Circle: 39 mm
- Single-Acting, Low Height Cylinders
- Lightweight, low-profile design for use in confined spaces, with stroke longer than RSSM
- Grooved plunger end with threaded holes for mounting tilt saddles
- Hard chrome-plated plunger and barrel interior resist wear and corrosion
- Maximum-sized springs speed piston return and increase spring life
- Plunger wiper reduces contaminants
- Stop ring for piston blow-out protection
- Powder coat finish for enhanced corrosion resistance and anti-rust
- Come with SQB-3/8UF female coupler & dust cap
