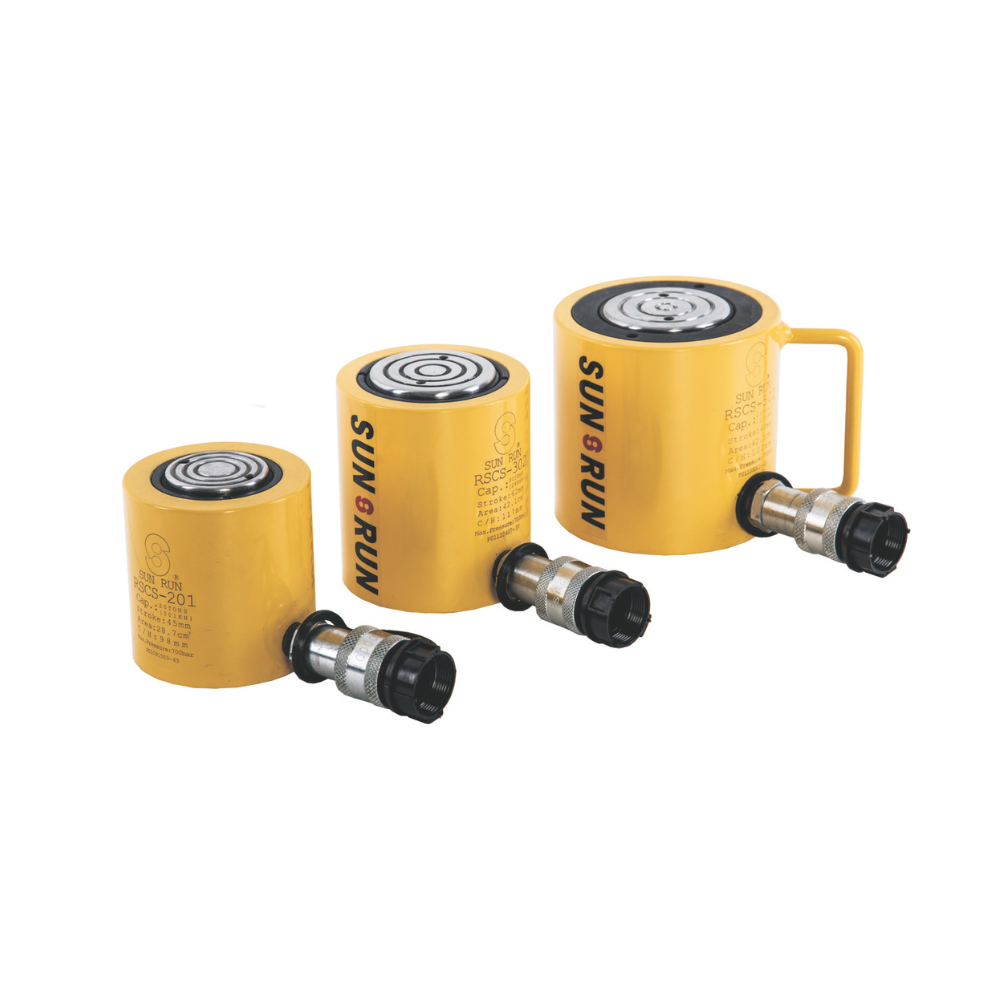

SUN RUN RSCS-101 Hydraulic Cylinder Cap 10ton Stroke 38mm
2 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSCS-101 Hydraulic Cylinder 10 ton, stroke 38mm. Low-profile, durable, chrome-plated, corrosion-resistant, ideal for tight spaces. Includes coupler & dust cap.
- Model Number: RSCS-101 Sun Run
- Cylinder Capacity: 10 ton (101 kN)
- Stroke: 38 mm
- Cylinder Effective Area: 14.5 cm²
- Oil Capacity: 55 cm³
- Collapsed Height: 88 mm
- Extended Height: 126 mm
- Outside Diameter: 69 mm
- Cylinder Bore Diameter: 42.9 mm
- Plunger Diameter: 38.1 mm
- Base to Advance Port: 17.5 mm
- Plunger Protrusion from Base: 5 mm
- Thread: M4 mm
- Thread Depth: 8 mm
- Bolt Circle: 26 mm
- Single-Acting, Low Height Cylinder
- Lightweight, low-profile design for use in confined spaces, but stroke higher than RSSM
- Grooved plunger end with threaded holes for mounting tilt saddles
- Hard chrome plated plunger and inner barrel resists wear and corrosion
- Maximum sized springs speed piston return and increase spring life
- Plunger wiper reduces contaminants
- Stop ring for piston blow-out protection
- Powder coat finish for increased corrosion resistance and anti-rust
- Come with SQB-3/8UF female coupler & dust cap
