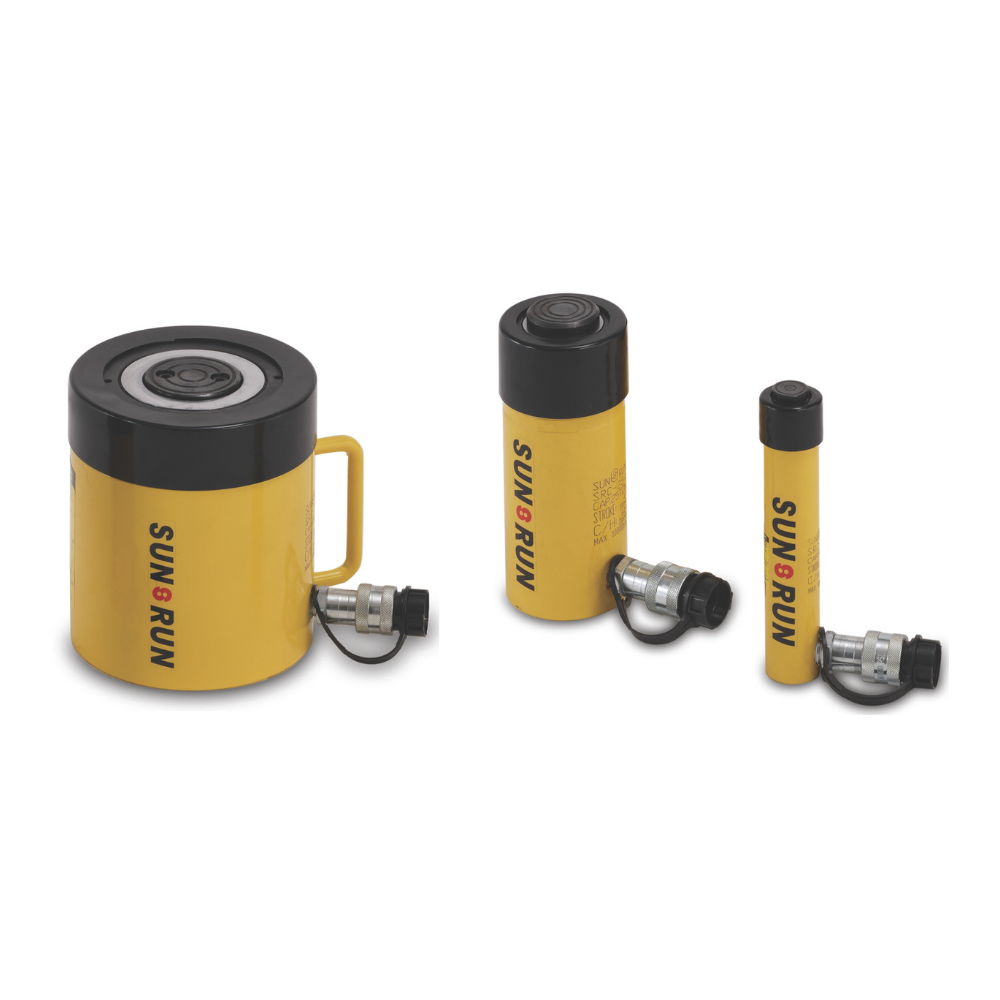

SUN RUN RSC-506 Hydraulic Cylinder Cap 50ton Stroke 159mm
40 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-504 Hydraulic Cylinder 50 ton, stroke 101mm. Tahan aus & korosi, dilengkapi plunger chrome, wiper seal, dan SQB-3/8UF coupler untuk penggunaan industrial.
- Model Number: RSC-506 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 159 mm
- Cylinder Effective Area: 71.2 cm²
- Oil Capacity: 1131 cm³
- Collapsed Height: 282 mm
- Extended Height: 441 mm
- Outside Diameter: 127 mm
- Cylinder Bore Diameter: 95.2 mm
- Plunger Diameter: 79.5 mm
- Base to Advance Port: 35 mm
- Saddle Diameter: 71 mm
- Saddle Protrusion from Plunger: 2 mm
- Plunger Internal Thread: –
- Plunger Thread Length: –
- Collar Thread: 5″-12 in
- Collar Thread Length: 55 mm
- Bolt Circle: 95 mm
- Thread: 1/2″-13 UN in
- Thread Depth: 19 mm
- Single-Acting, Spring Return Collar Thread Cylinders:
- Equipped with collar thread and base holes (on most models) for greater mounting flexibility onto fixtures (see page 16 for details).
- Equipped with inner plunger thread (5 ton to 30 ton) for greater flexibility in designing fixtures.
- Bronze alloy bearing on plunger minimizes scoring due to off-center load.
- Hard chrome-plated plunger resists wear and corrosion.
- Inner barrel walls are hard chrome-plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent dirt ingress.
- Equipped with stop-ring to prevent plunger blow-out and withstand full “Dead-End” load.
- Powder-coated finish for enhanced corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Comes with SQB-3/8UF female coupler & dust cap.
