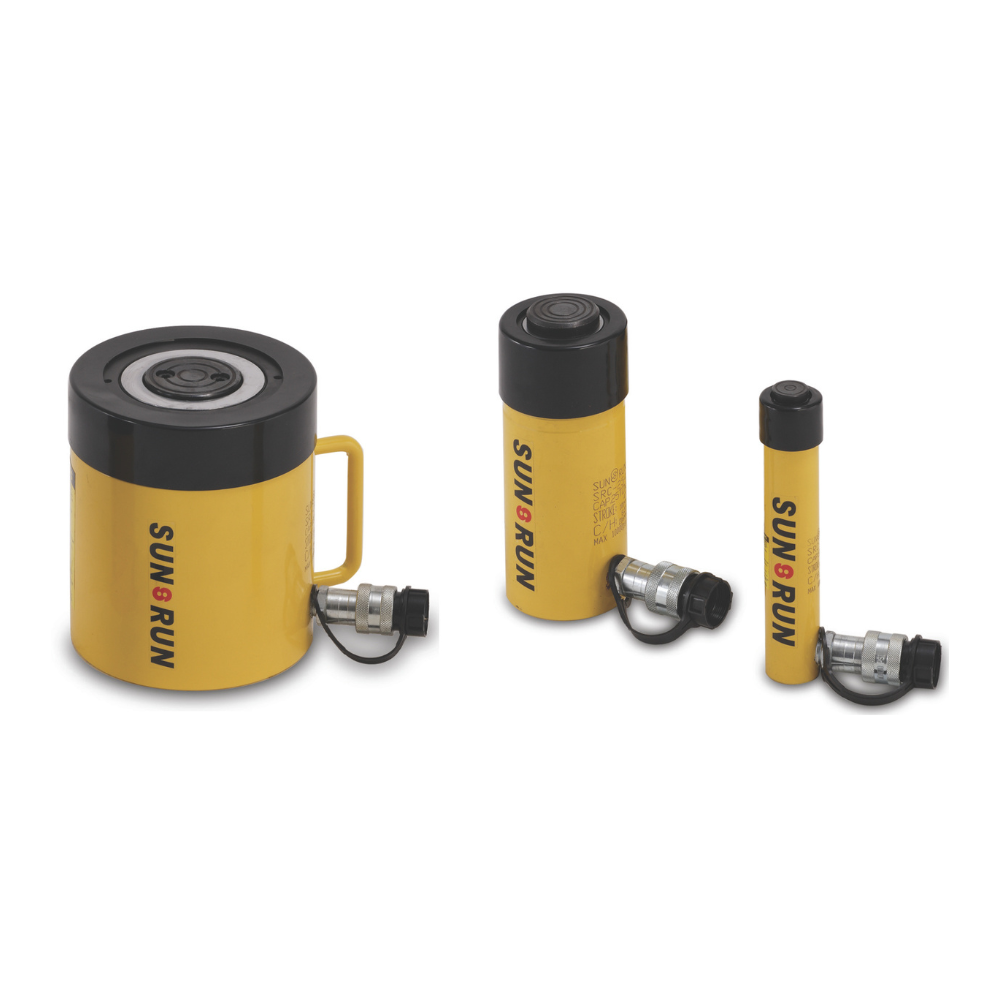

SUN RUN RSC-504 Hydraulic Cylinder Cap 50ton Stroke 101mm
14 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-504 Hydraulic Cylinder 50 ton dengan stroke 101 mm, plunger chrome plated, bearing perunggu, dan dilengkapi coupler & dust cap untuk performa tahan lama dan presisi tinggi.
- Model Number: RSC-504 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 101 mm
- Cylinder Effective Area: 71.2 cm²
- Oil Capacity: 719 cm³
- Collapsed Height: 227 mm
- Extended Height: 328 mm
- Outside Diameter: 127 mm
- Cylinder Bore Diameter: 95.2 mm
- Plunger Diameter: 79.5 mm
- Base to Advance Port: 33 mm
- Saddle Diameter: 71 mm
- Saddle Protrusion from Plunger: 2 mm
- Plunger Internal Thread: – in
- Plunger Thread Length: – mm
- Collar Thread: 5″-12 in
- Collar Thread Length: 55 mm
- Bolt Circle: 95 mm
- Thread: 1/2″-13 UN in
- Thread Depth: 19 mm
- Single-Acting, Spring Return Collar Thread Cylinders: Equipped with collar thread and base holes (on most models) for greater flexibility in mounting onto fixtures.
- Inner Plunger Thread: Equipped (5 ton to 30 ton) for greater flexibility in designing fixtures.
- Bronze Alloy Bearing: On plunger to minimize scoring due to off-center load.
- Hard Chrome Plated Plunger: Resists wear and corrosion.
- Inner Barrel Wall: Hard chrome plated to resist wear and corrosion in high humidity environments.
- Wiper Seals: Equipped to prevent ingress of dirt.
- Stop-Ring: Prevents plunger blow-out and withstands full “Dead-End” load.
- Powder Coated Finish: Provides greater corrosion protection.
- Plastic Cap: Protects collar threads.
- Comes with SQB-3/8UF Female Coupler & Dust Cap
