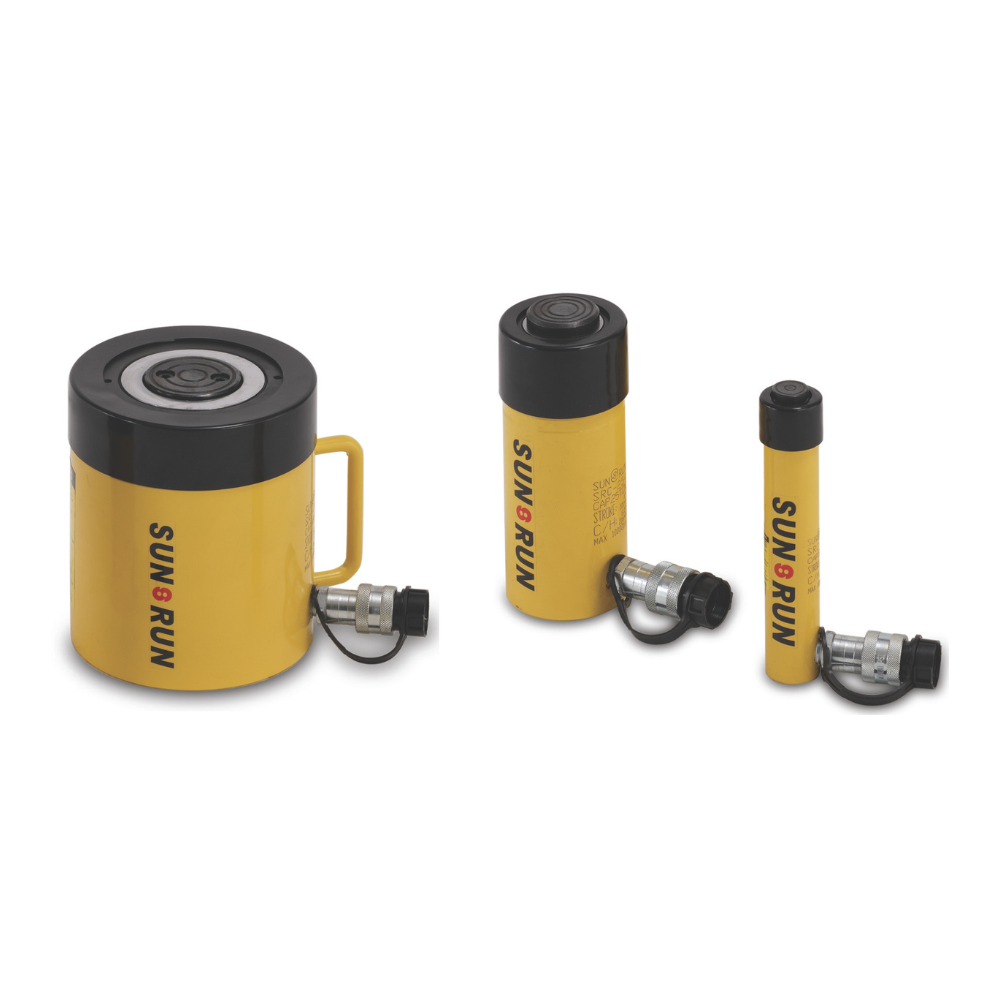

SUN RUN RSC-502 Hydraulic Cylinder Cap 50ton Stroke 51mm
37 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-502 Hydraulic Cylinder 50 ton, stroke 51 mm, dilengkapi plunger hard chrome, bearing perunggu, wiper seal, dan coupler SQB-3/8UF, tahan korosi.
- Model Number: RSC-502 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 51 mm
- Cylinder Effective Area: 71.2 cm²
- Oil Capacity: 362 cm³
- Collapsed Height: 176 mm
- Extended Height: 227 mm
- Outside Diameter: 127 mm
- Cylinder Bore Diameter: 95.2 mm
- Plunger Diameter: 79.5 mm
- Base to Advance Port: 33 mm
- Saddle Diameter: 71 mm
- Saddle Protrusion from Plunger: 2 mm
- Plunger Internal Thread: –
- Plunger Thread Length: –
- Collar Thread: 5″-12 in
- Collar Thread Length: 55 mm
- Bolt Circle: 95 mm
- Thread: 1/2″-13 UN in
- Thread Depth: mm
- Single-Acting, Spring Return Collar Thread Cylinders:
- Equipped with collar thread and base holes (on most models) for greater mounting flexibility.
- Equipped with inner plunger thread (5 ton to 30 ton) for greater fixture design flexibility.
- Bronze alloy bearing on plunger minimizes scoring due to off-center load.
- Hard chrome-plated plunger resists wear and corrosion.
- Inner barrel walls are hard chrome-plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent dirt ingress.
- Equipped with stop-ring to prevent plunger blow-out and withstand full “Dead-End” load.
- Powder-coated finish for greater corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Comes with SQB-3/8UF female coupler & dust cap.
