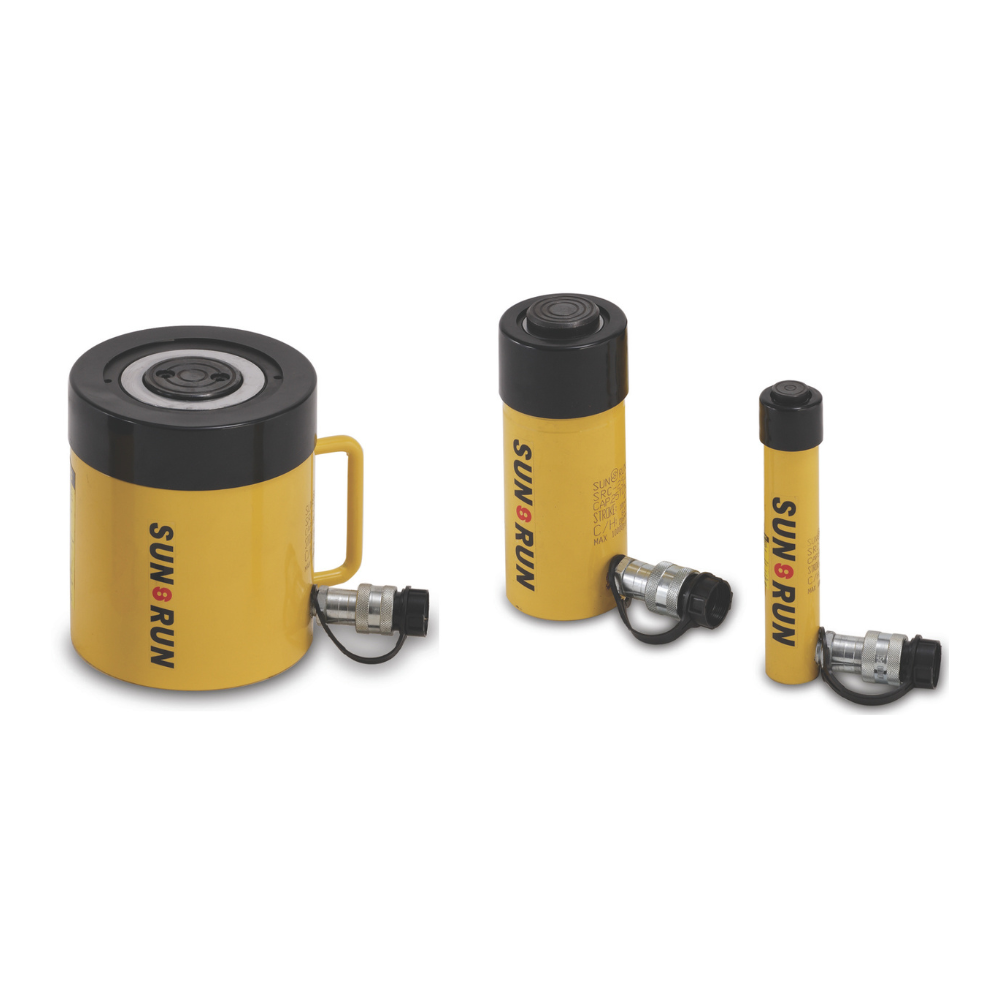

SUN RUN RSC-5013 Hydraulic Cylinder Cap 50ton Stroke 337mm
54 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-5013 Hydraulic Cylinder 50 ton, stroke 337mm, dilengkapi collar thread, bronze bearing, hard chrome plunger & wiper seal. Tahan aus & korosi, siap pakai.
- Model Number: RSC-5013 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 337 mm
- Cylinder Effective Area: 337 cm²
- Oil Capacity: 71.2 cm³
- Collapsed Height: 2399 mm
- Extended Height: 460 mm
- Outside Diameter: 797 mm
- Cylinder Bore Diameter: 127 mm
- Plunger Diameter: 95.2 mm
- Base to Advance Port: 79.5 mm
- Saddle Diameter: 35 mm
- Saddle Protrusion from Plunger: 71 mm
- Plunger Internal Thread: –
- Plunger Thread Length: –
- Collar Thread: 5″-12 in
- Collar Thread Length: 55 mm
- Bolt Circle: 95 mm
- Thread: 1/2″-13 UN in
- Thread Depth: 19 mm
- Single-Acting, Spring Return Collar Thread Cylinders
- Equipped with collar thread and base holes (on most models) for greater flexibility in mounting onto fixtures. (See page 16 for details)
- Equipped with inner plunger thread (5 ton to 30 ton) for greater flexibility in designing fixtures
- Bronze alloy bearing on plunger to minimize scoring due to off-center load
- Hard chrome-plated plunger to resist wear and corrosion
- Inner barrel walls are hard chrome-plated to resist wear and corrosion in high-humidity environments
- Equipped with wiper seals to prevent ingress of dirt
- Equipped with stop-ring to prevent plunger blow-out and withstand full “Dead-End” load
- Powder-coated finish for greater corrosion protection
- Equipped with plastic cap to protect collar threads
- Comes with SQB-3/8UF female coupler & dust cap
