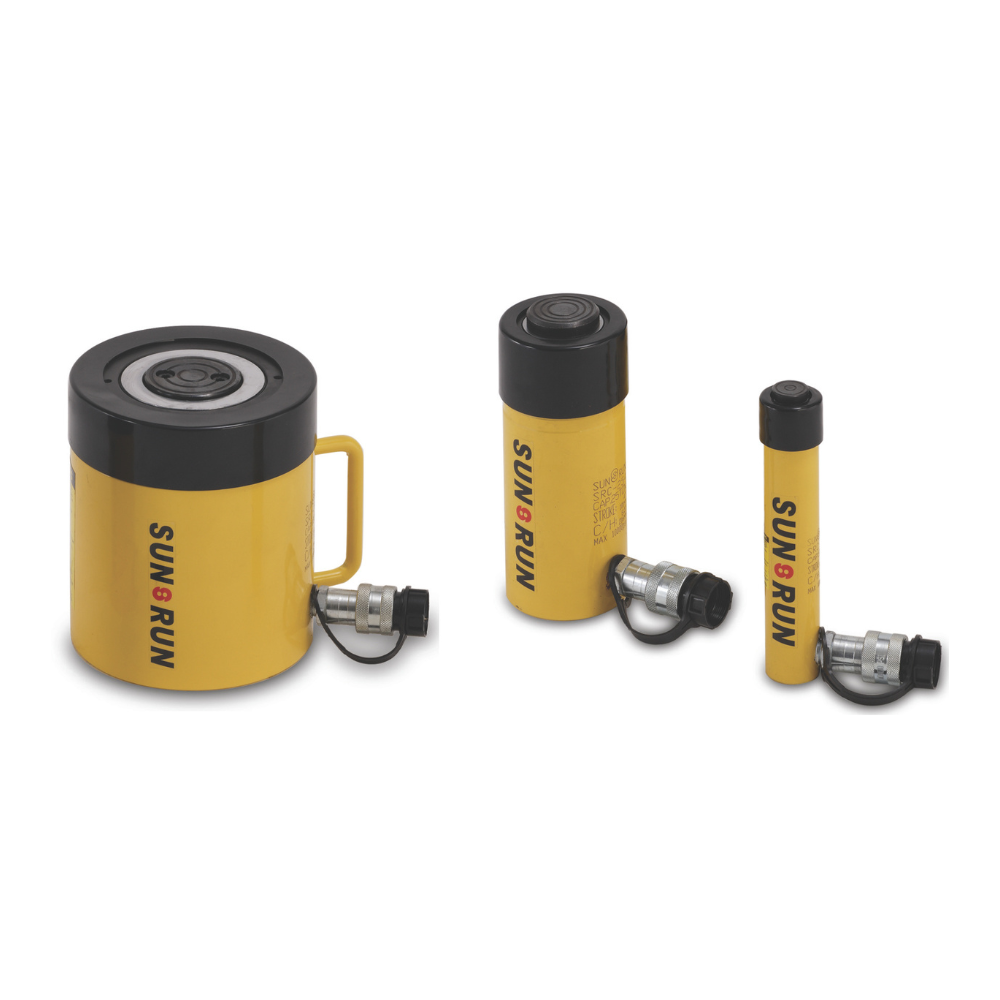

SUN RUN RSC-308 Hydraulic Cylinder Cap 30ton Stroke 209mm
13 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSC-308 Hydraulic Cylinder 30 ton, stroke 209mm, dilengkapi collar thread, wiper seal, dan plunger chrome tahan aus. Ideal untuk aplikasi industri berat.
- Model Number: RSC-308 Sun Run
- Cylinder Capacity: 30 ton (295 kN)
- Stroke: 209 mm
- Cylinder Effective Area: 42.1 cm²
- Oil Capacity: 880 cm³
- Collapsed Height: 387 mm
- Extended Height: 596 mm
- Outside Diameter: 101 mm
- Cylinder Bore Diameter: 73.2 mm
- Plunger Diameter: 57.2 mm
- Base to Advance Port: 57 mm
- Saddle Diameter: 50 mm
- Saddle Protrusion from Plunger: 10 mm
- Plunger Internal Thread: in
- Plunger Thread Length: mm
- Collar Thread: in
- Collar Thread Length: mm
- Bolt Circle: mm
- Thread: UN in
- Thread Depth: mm
- Type: Single-Acting, Spring Return, Collar Thread Cylinder
- Equipped with collar thread and base holes (on most models) for greater flexibility in fixture mounting.
- Equipped with inner plunger thread (5 ton to 30 ton) for flexible fixture design.
- Bronze alloy bearing on plunger to minimize scoring due to off-center load.
- Hard chrome plated plunger to resist wear and corrosion.
- Inner barrel walls hard chrome plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent dirt ingress.
- Equipped with stop ring to prevent plunger blow-out and withstand full “dead-end” load.
- Powder-coated finish for enhanced corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Come with SQB-3/8UF female coupler & dust cap.
