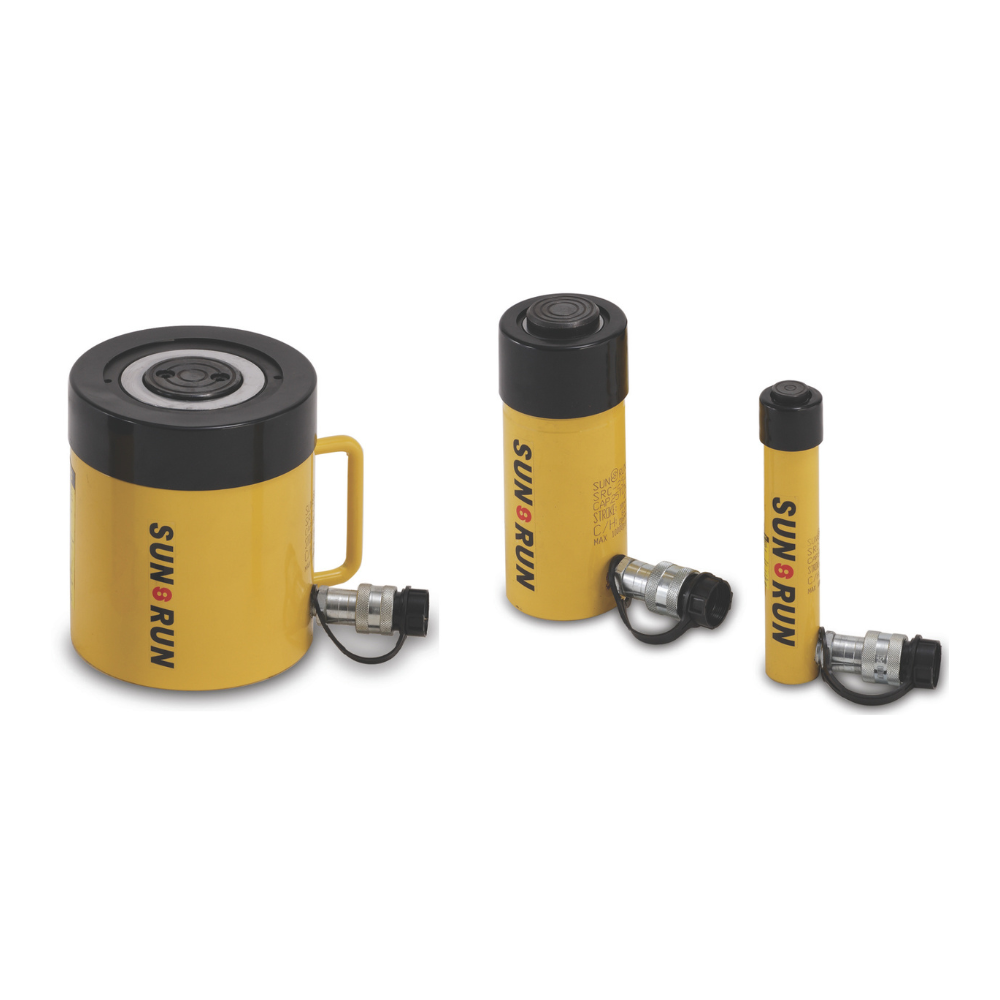

- Model Number: RSC-2514 Sun Run
- Cylinder Capacity: 25 ton (232 kN)
- Stroke: 362 mm
- Cylinder Effective Area: 33.2 cm²
- Oil Capacity: 1202 cm³
- Collapsed Height: 476 mm
- Extended Height: 838 mm
- Outside Diameter: 85 mm
- Cylinder Bore Diameter: 65.0 mm
- Plunger Diameter: 57.2 mm
- Base to Advance Port: 25 mm
- Saddle Diameter: 50 mm
- Saddle Protrusion from Plunger: 10 mm
- Plunger Internal Thread: 1-1/2″-16 UN
- Plunger Thread Length: 25 mm
- Collar Thread: 3-5/16″-12 UN
- Collar Thread Length: 49 mm
- Bolt Circle: 58 mm
- Thread: 1/2″-13 UN
- Thread Depth: 19 mm
- Single-Acting, Spring Return, Collar Thread Cylinders
- Equipped with collar thread and base mounting holes (on most models) for greater mounting flexibility.
- Equipped with internal plunger thread (5 ton to 30 ton) for flexible fixture design.
- Bronze alloy bearing on plunger minimizes scoring caused by off-center loads.
- Hard chrome-plated plunger resists wear and corrosion.
- Inner barrel wall is hard chrome plated to resist wear and corrosion in high-humidity environments.
- Equipped with wiper seals to prevent dirt ingress.
- Equipped with stop-ring to prevent plunger blow-out and withstand full dead-end load.
- Powder-coated finish for enhanced corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Come with SQB-3/8UF female coupler & dust cap.
