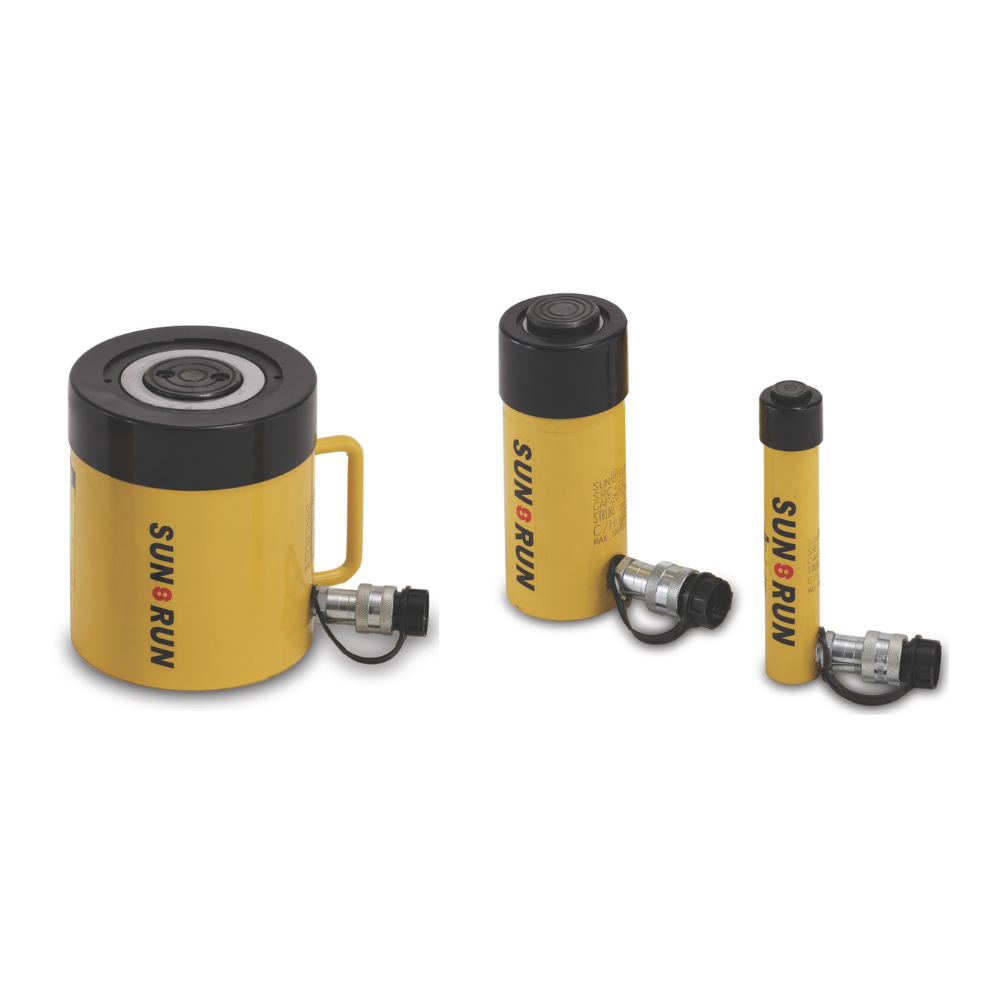

SUN RUN RSC-1014 Hydraulic Cylinder Cap 10T dengan stroke 356 mm, single-acting spring return. Desain kuat, presisi tinggi, tahan aus & korosi, ideal untuk aplikasi industri profesional.
- Model Number : RSC-1014 Sun Run
- Cylinder Capacity: 10 ton (101 kN)
- Stroke: 356 mm
- Cylinder Effective Area: 14.5 cm²
- Oil Capacity: 516 cm³
- Collapsed Height: 450 mm
- Extended Height: 806 mm
- Outside Diameter: 57 mm
- Cylinder Bore Diameter: 42.9 mm
- Plunger Diameter: 38.1 mm
- Base to Adv. Port: 19 mm
- Saddle Diameter: 35 mm
- Saddle Protrusion from Plunger: 6 mm
- Plunger Internal Thread: 1″-8 in
- Plunger Thread Length: 19 mm
- Collar Thread: 2¼”-14 in
- Collar Thread Length: 26 mm
- Bolt Circle: 39 mm
- Thread: 5/16″-18 UN in
- Thread Depth: 12 mm
- Single-Acting, Spring Return Collar Thread Cylinders
- Equipped with collar thread and base holes (on most models) for greater mounting flexibility.
- Equipped with inner plunger thread (5 to 30 ton) for fixture design flexibility.
- Bronze alloy bearing on plunger minimizes scoring from off-centre load.
- Hard chrome plated plunger for wear and corrosion resistance.
- Inner barrel wall hard chrome plated for added protection in humid environments.
- Equipped with wiper seals to prevent dirt ingress.
- Stop-ring prevents plunger blow-out and withstands full “Dead-End” load.
- Powder-coated finish for superior corrosion protection.
- Equipped with plastic cap to protect collar threads.
- Come with SQB-3/8UF female coupler & dust cap.
