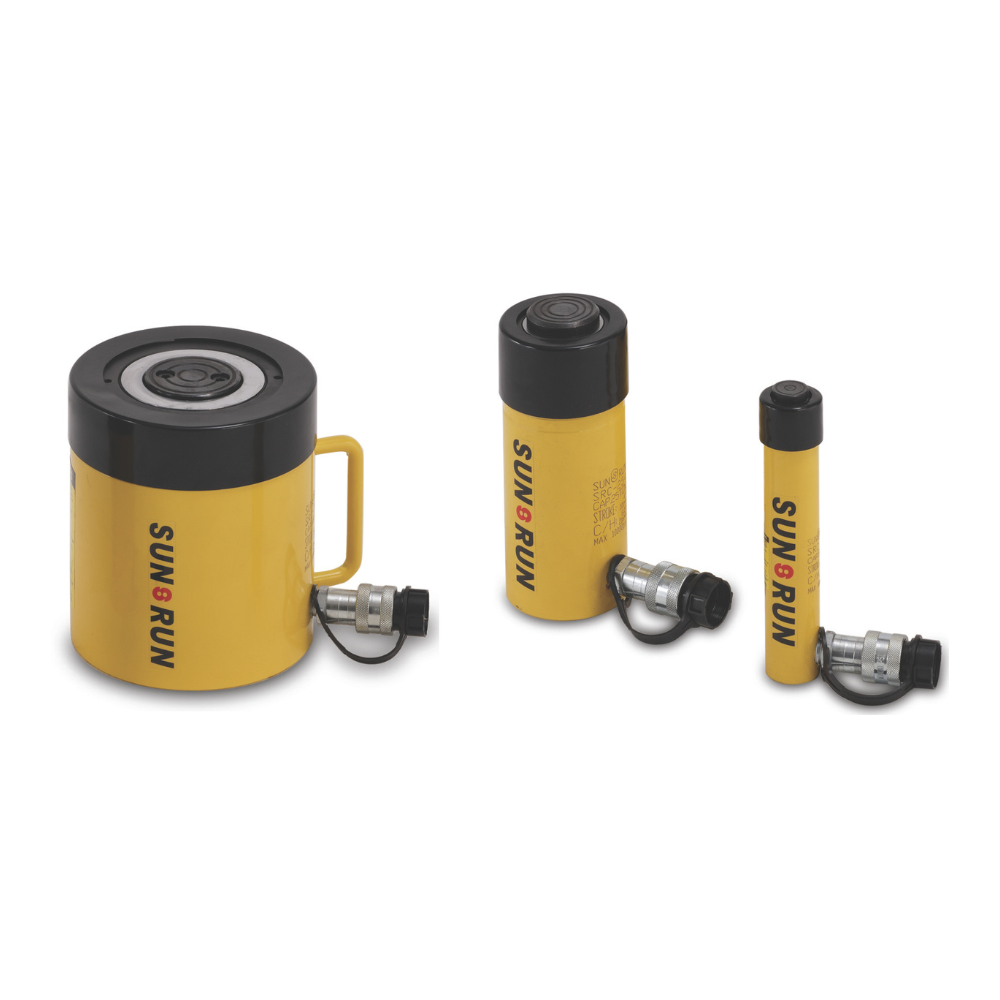

Name: SUN RUN RSC-101 Hydraulic Cylinder Cap 10ton Stroke 26mm
Brand: Sun Run
SKU: SKU-4896
Price: 99 IDR
Availability: InStock

Model Number: RSC-101 Sun Run
Cylinder Capacity: 10 ton (101 kN)
Stroke: 26 mm
Cylinder Effective Area: 14.5 cm²
Oil Capacity: 38 cm³
Collapsed Height: 89 mm
Extended Height: 115 mm
Outside Diameter: 57 mm
Cylinder Bore Diameter: 42.9 mm
Plunger Diameter: 38.1 mm
Base to Advance Port: 19 mm
Saddle Diameter: –
Saddle Protrusion from Plunger: –
Plunger Internal Thread: #10-24 UN
Plunger Thread Length: 6 mm
Collar Thread: 2¼”-14 UN
Collar Thread Length: 26 mm
Bolt Circle: 39 mm
Thread: 5/16″-18 UN
Thread Depth: 12 mm
Single-Acting, Spring Return Collar Thread Cylinder
Equipped with collar thread and base holes (on most models) for greater mounting flexibility
Equipped with inner plunger thread (5 ton to 30 ton) for flexible fixture design
Bronze alloy bearing on plunger to minimize scoring due to off-center load
Hard chrome plated plunger to resist wear and corrosion
Inner barrel walls are hard chrome plated to resist wear and corrosion in high-humidity environments
Equipped with wiper seals to prevent dirt ingress
Equipped with stop ring to prevent plunger blow-out and withstand full “dead-end” load
Powder-coated finish for enhanced corrosion protection
Equipped with plastic cap to protect collar threads
Come with SQB-3/8UF female coupler & dust cap
