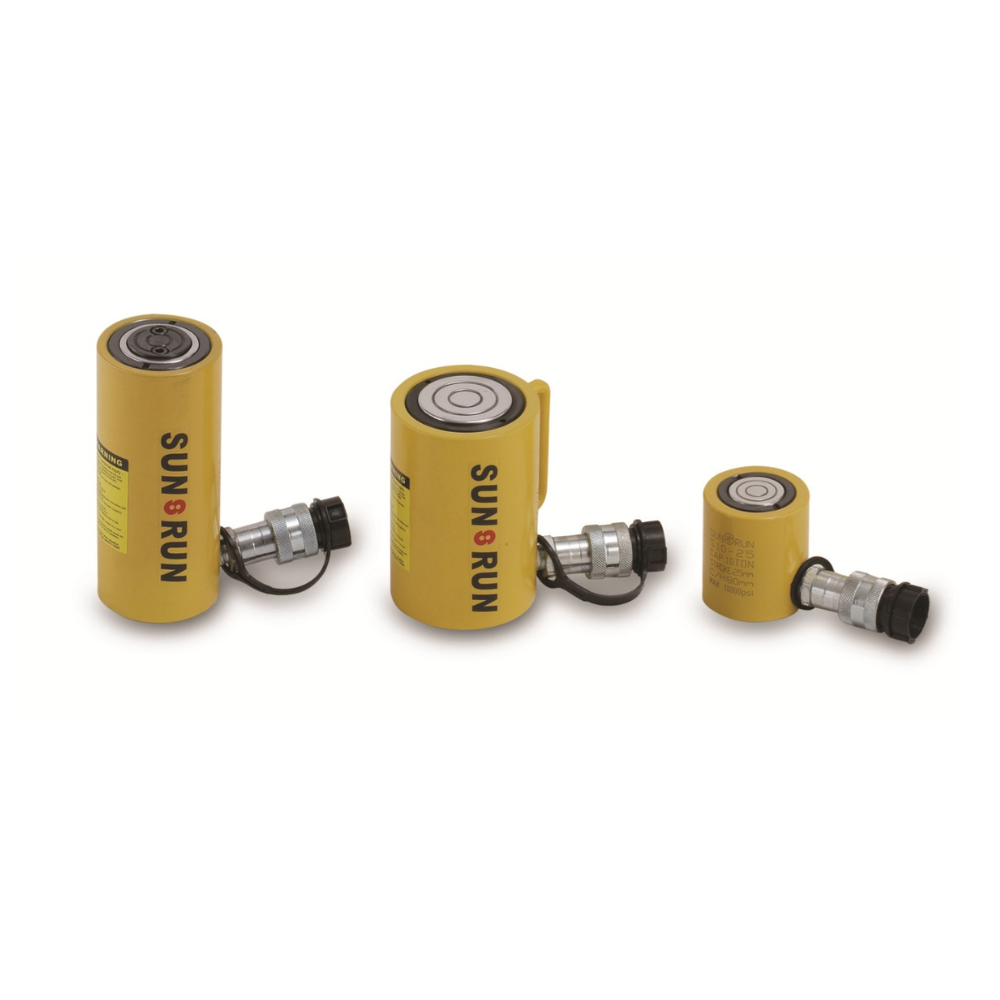

SUN RUN S Series S50-50 Hydraulic Cylinder Cap 50 ton dengan stroke 50 mm, desain single-acting, kuat dan presisi. Cocok untuk aplikasi industri berat, tahan aus, dan anti korosi.
- Model Number: S50-50 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 50.0 mm
- Effective Area: 71.21 cm²
- Oil Capacity: 356.0 cm³
- Collapsed Height: 120.0 mm
- Extended Height: 170.0 mm
- Outside Diameter: 127.0 mm
- Cylinder Bore Diameter: 95.25 mm
- Plunger Diameter: 79.50 mm
- Base to Advance Port: 24.0 mm
- Saddle Diameter: –
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and barrel interior resist wear and corrosion, providing a tighter seal and longer cylinder life.
- Maximum-sized springs ensure faster piston return and extended spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for enhanced corrosion resistance and rust prevention.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
