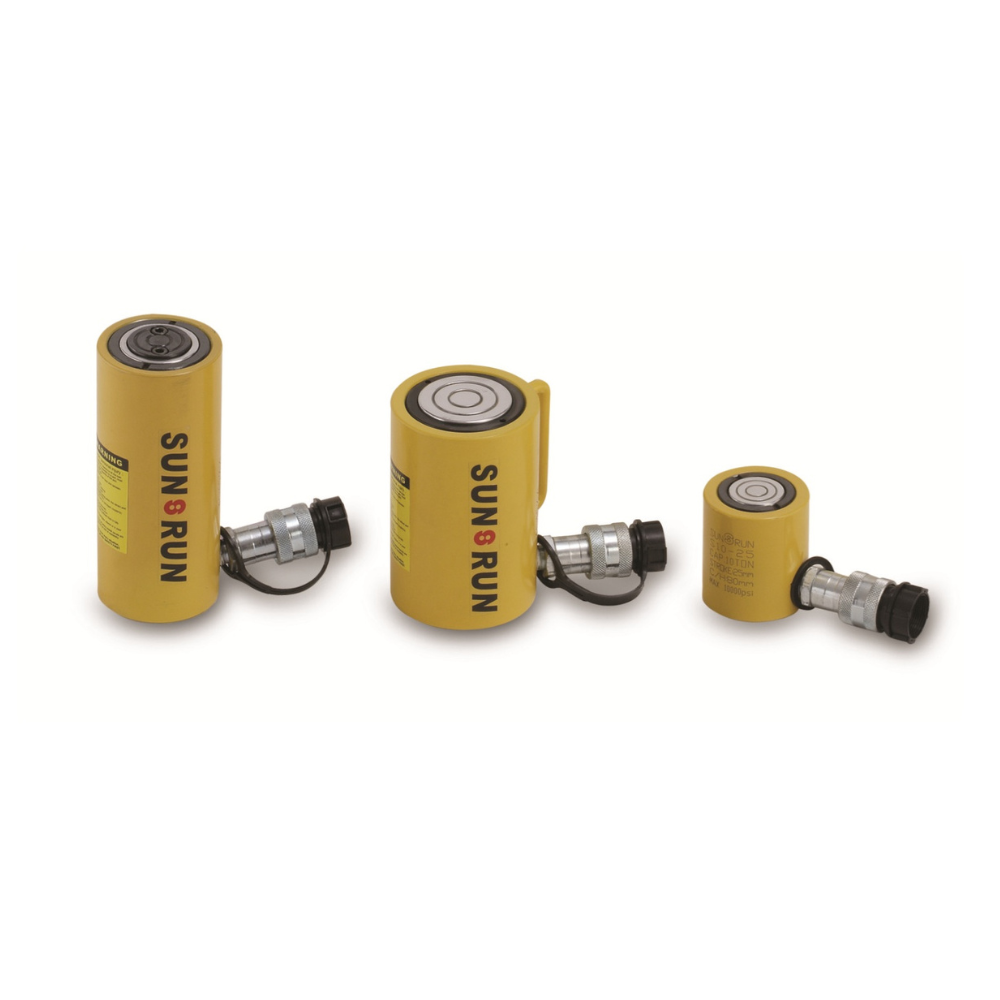

SUN RUN S Series S50-25 Hydraulic Cylinder Cap 50 ton dengan stroke 25 mm. Desain single-acting, bodi kuat, tahan korosi, presisi tinggi, cocok untuk aplikasi industri berat.
- Model Number: S50-25 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 25.0 mm
- Effective Area: 71.21 cm²
- Oil Capacity: 178.0 cm³
- Collapsed Height: 95.0 mm
- Extended Height: 120.0 mm
- Outside Diameter: 127.0 mm
- Cylinder Bore Diameter: 95.25 mm
- Plunger Diameter: 79.50 mm
- Base to Advance Port: 24.0 mm
- Saddle Diameter: –
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and inner barrel resist wear and corrosion, ensuring tighter sealing and extended cylinder life.
- Maximum-sized springs provide faster piston return and longer spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for increased corrosion resistance and rust prevention.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
