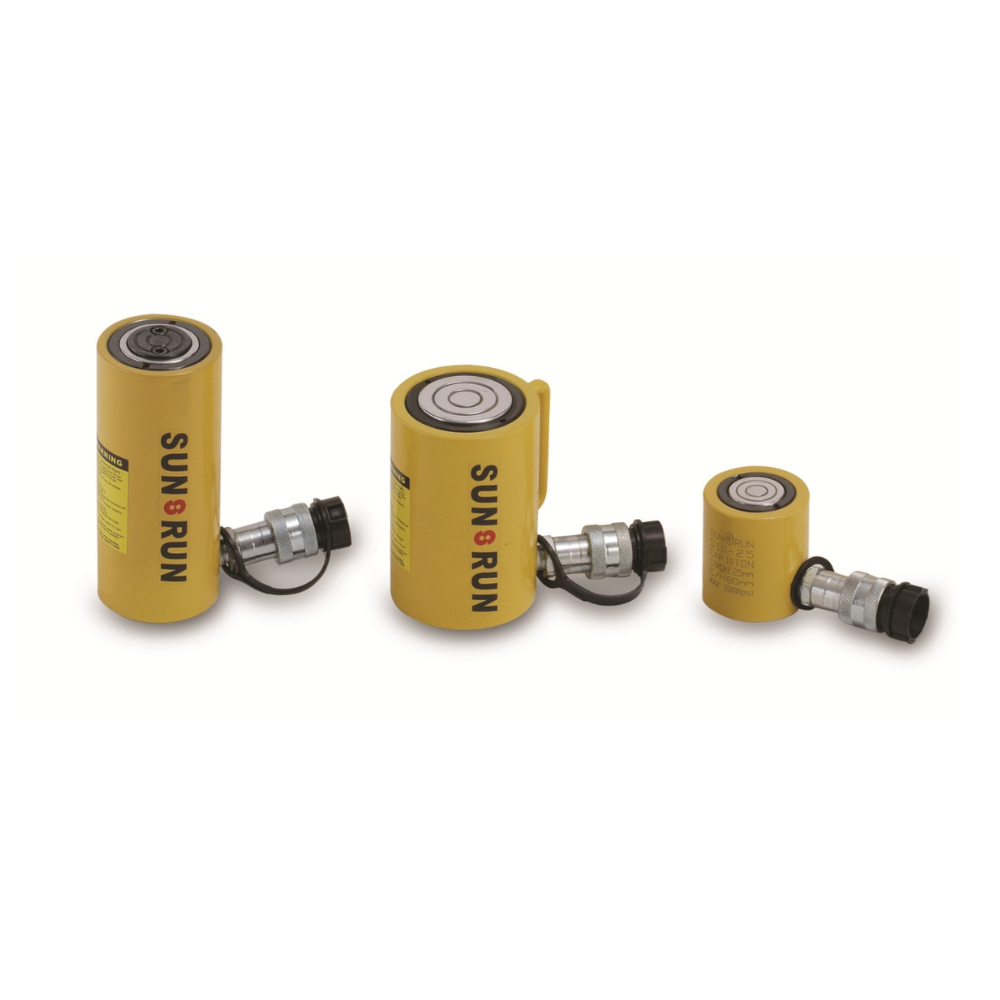

Hydraulic Cylinder SUN RUN S50-100 berkapasitas 50 ton dengan stroke 100mm. Kuat, presisi, anti karat, ideal untuk aplikasi industri berat dan profesional.
- Model Number: S50-100 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 100.0 mm
- Effective Area: 71.21 cm²
- Oil Capacity: 712.0 cm³
- Collapsed Height: 215.0 mm
- Extended Height: 315.0 mm
- Outside Diameter: 127.0 mm
- Cylinder Bore Diameter: 92.25 mm
- Plunger Diameter: 79.50 mm
- Base to Advance Port: 32.0 mm
- Saddle Diameter: 71.0 mm
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome plated plunger and inner barrel resist wear and corrosion, providing tighter sealing and extended cylinder life.
- Maximum-sized springs ensure fast piston return and longer spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for increased corrosion resistance and anti-rust protection.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
