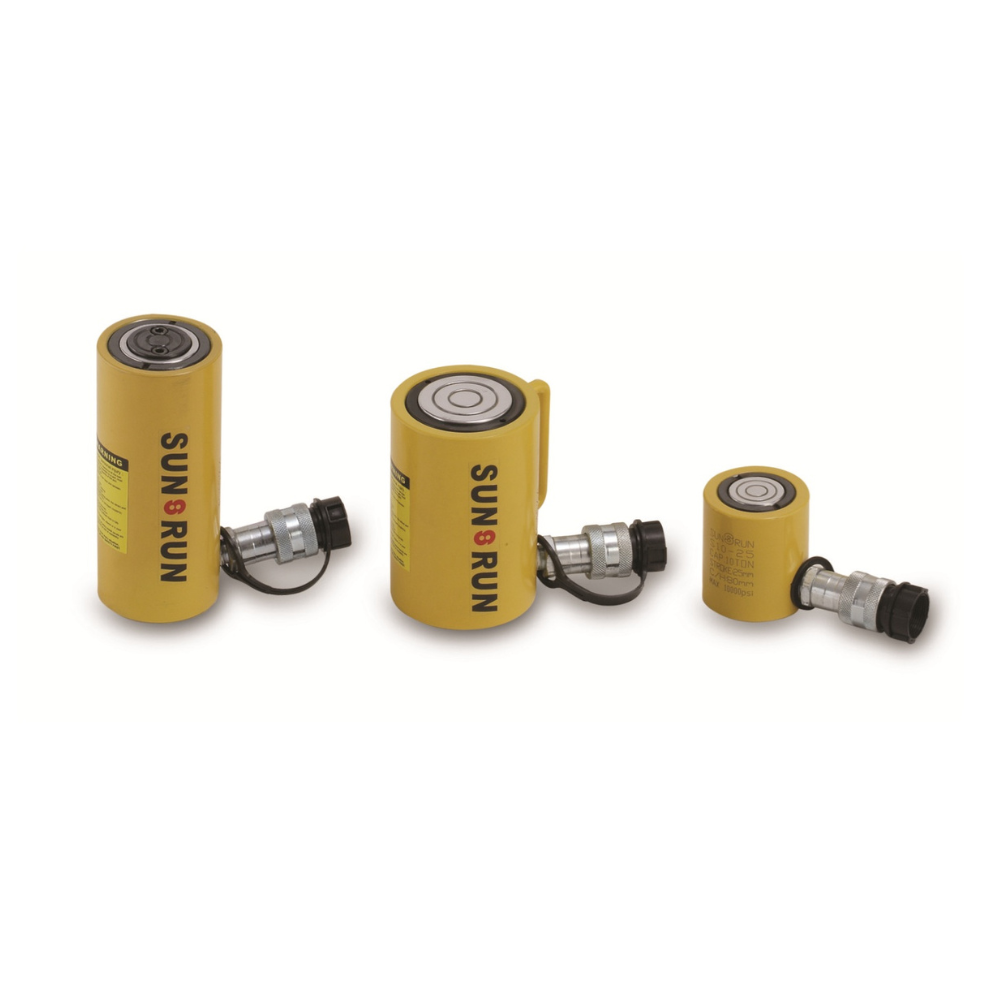

SUN RUN S Series S30-150 Hydraulic Cylinder Cap 30ton Stroke 150mm

Name: SUN RUN S Series S30-150 Hydraulic Cylinder Cap 30ton Stroke 150mm
Brand: Sun Run
SKU: S30-150
Price: 99 IDR
Availability: InStock

54 orang sedang melihat produk ini

Harga aslinya adalah: Rp100.Harga saat ini adalah: Rp99.

Hydraulic cylinder 30 ton SUN RUN S Series S30-150 dengan konstruksi kokoh, stroke 150 mm, single acting, tahan korosi, respons cepat, cocok untuk aplikasi industri berat.

Download PDF

MINTA PENAWARAN

Add to Wishlist

Spesifikasi SUN RUN S Series S30-150 Hydraulic Cylinder Cap 30ton Stroke 150mm

Model Number: S30-150 Sun Run
Cylinder Capacity: 30 ton (294 kN)
Stroke: 150.0 mm
Effective Area: 42.00 cm²
Oil Capacity: 630.0 cm³
Collapsed Height: 245.0 mm
Extended Height: 395.0 mm
Outside Diameter: 99.0 mm
Cylinder Bore Diameter: 73.15 mm
Plunger Diameter: 57.15 mm
Base to Advance Port: 22.5 mm
Saddle Diameter: 49.5 mm
Single-Acting Cylinders – General Features
Designed for use in all positions.
Hard chrome plated plunger and barrel interior resist wear and corrosion, providing tighter sealing and extended cylinder life.
Maximum-sized springs ensure fast piston return and longer spring life.
Special soft ring reduces wear caused by off-center loads.
Plunger wiper minimizes contamination.
Stop ring provides piston blow-out protection.
Powder-coated finish enhances corrosion resistance and rust prevention.
All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
