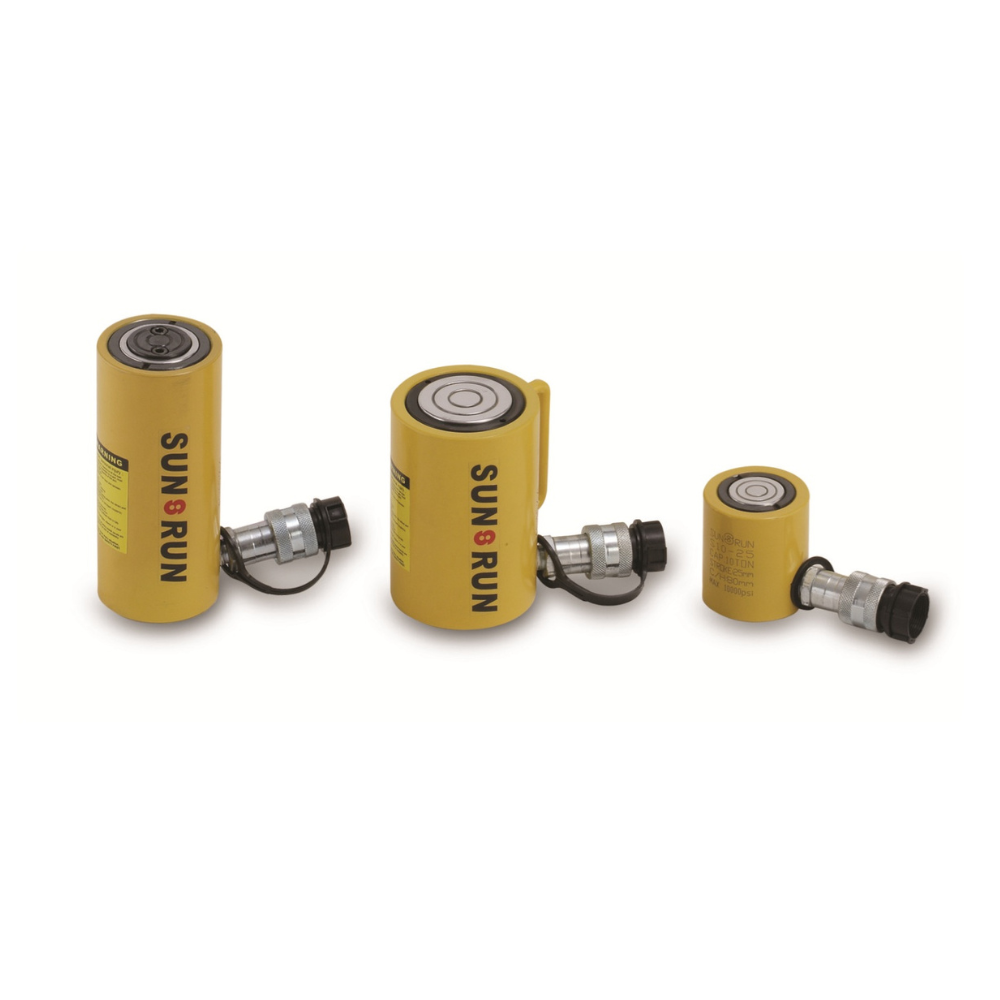

Hydraulic cylinder SUN RUN S Series S30-100 berkapasitas 30 ton dengan stroke 100 mm, single-acting, konstruksi kuat, tahan korosi, cocok untuk aplikasi industri berat.
- Model Number: S30-100 Sun Run
- Cylinder Capacity: 30 ton (294 kN)
- Stroke: 100.0 mm
- Effective Area: 42.00 cm²
- Oil Capacity: 420.0 cm³
- Collapsed Height: 195.0 mm
- Extended Height: 295.0 mm
- Outside Diameter: 99.0 mm
- Cylinder Bore Diameter: 73.15 mm
- Plunger Diameter: 57.15 mm
- Base to Advance Port: 22.5 mm
- Saddle Diameter: 49.5 mm
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and barrel interior resist wear and corrosion, providing a tighter seal and extending cylinder life.
- Maximum-sized springs ensure fast piston return and increased spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for enhanced corrosion resistance and rust prevention.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
