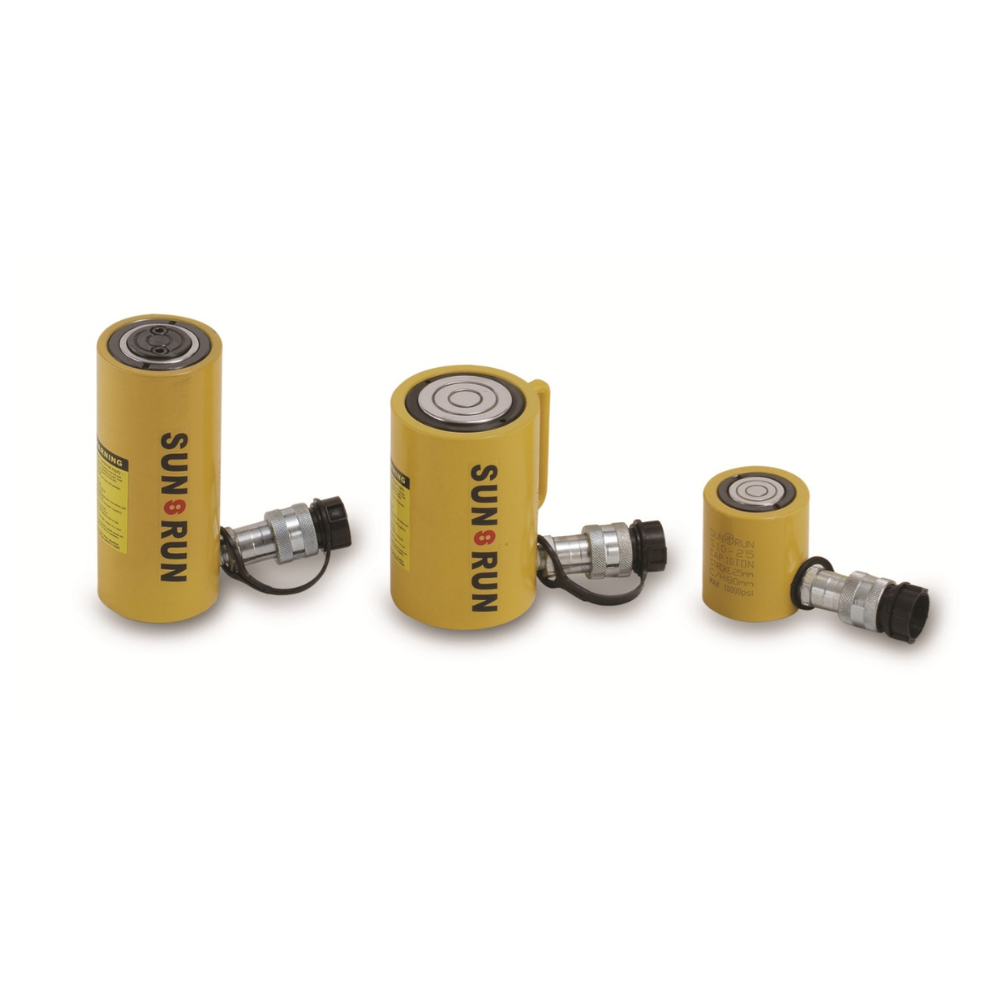

Hydraulic cylinder SUN RUN S200-150 kapasitas 200 ton dengan stroke 150mm. Desain kokoh, single-acting, tahan korosi, ideal untuk aplikasi industri dan pekerjaan berat.
- Model Number: S200-150 Sun Run
- Cylinder Capacity: 200 ton (1984 kN)
- Stroke: 150.0 mm
- Effective Area: 283.38 cm²
- Oil Capacity: 4250.7 cm³
- Collapsed Height: 300.0 mm
- Extended Height: 450.0 mm
- Outside Diameter: 255.0 mm
- Cylinder Bore Diameter: 190.00 mm
- Plunger Diameter: 135.00 mm
- Base to Advance Port: 50.0 mm
- Saddle Diameter: 115 mm
- Single-Acting Cylinder – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and inner barrel resist wear and corrosion, providing a tighter seal and extended cylinder life.
- Maximum-sized springs ensure faster piston return and increased spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contamination.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for enhanced corrosion resistance and anti-rust performance.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
