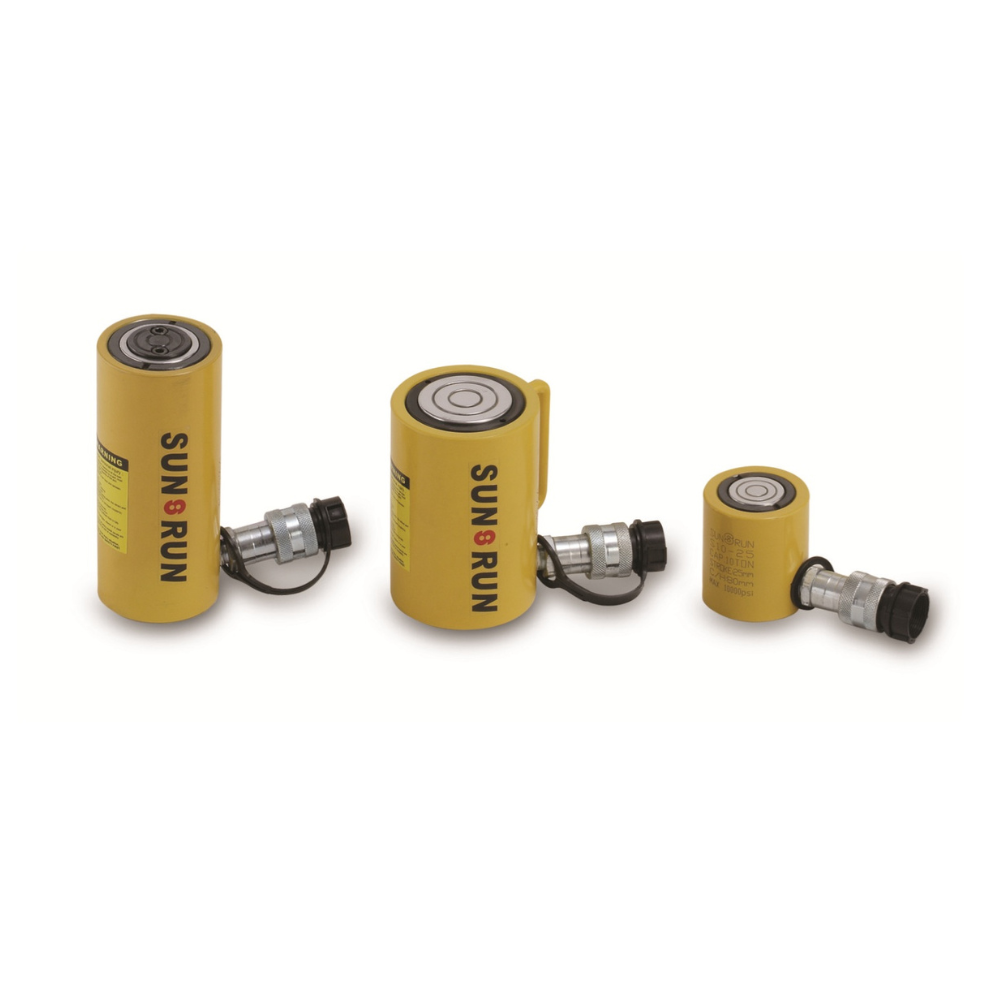

SUN RUN S Series S150-50 Hydraulic Cylinder Cap 150ton Stroke 50mm

Name: SUN RUN S Series S150-50 Hydraulic Cylinder Cap 150ton Stroke 50mm
Brand: Sun Run
SKU: S150-50
Price: 99 IDR
Availability: InStock

20 orang sedang melihat produk ini

Harga aslinya adalah: Rp100.Harga saat ini adalah: Rp99.

SUN RUN S Series S150-50 Hydraulic Cylinder Cap 150 ton dengan stroke 50 mm, konstruksi kuat, tahan korosi, presisi tinggi, cocok untuk aplikasi industri berat dan profesional.

Download PDF

MINTA PENAWARAN

Add to Wishlist

Spesifikasi SUN RUN S Series S150-50 Hydraulic Cylinder Cap 150ton Stroke 50mm

Model Number: S150-50 Sun Run
Cylinder Capacity: 150 ton (1407 kN)
Stroke: 50.0 mm
Effective Area: 200.96 cm²
Oil Capacity: 1004.8 cm³
Collapsed Height: 200.0 mm
Extended Height: 250.0 mm
Outside Diameter: 215.0 mm
Cylinder Bore Diameter: 160.00 mm
Plunger Diameter: 115.00 mm
Base to Advance Port: 50.0 mm
Saddle Diameter: 99 mm
Single-Acting Cylinders – General Features
Designed for use in all positions.
Hard chrome-plated plunger and barrel interior resist wear and corrosion, ensuring tighter sealing and extended cylinder life.
Maximum-sized springs provide faster piston return and longer spring life.
Special soft ring reduces wear caused by off-center loads.
Plunger wiper minimizes contamination.
Stop ring provides piston blow-out protection.
Powder-coated finish enhances corrosion resistance and rust protection.
All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
