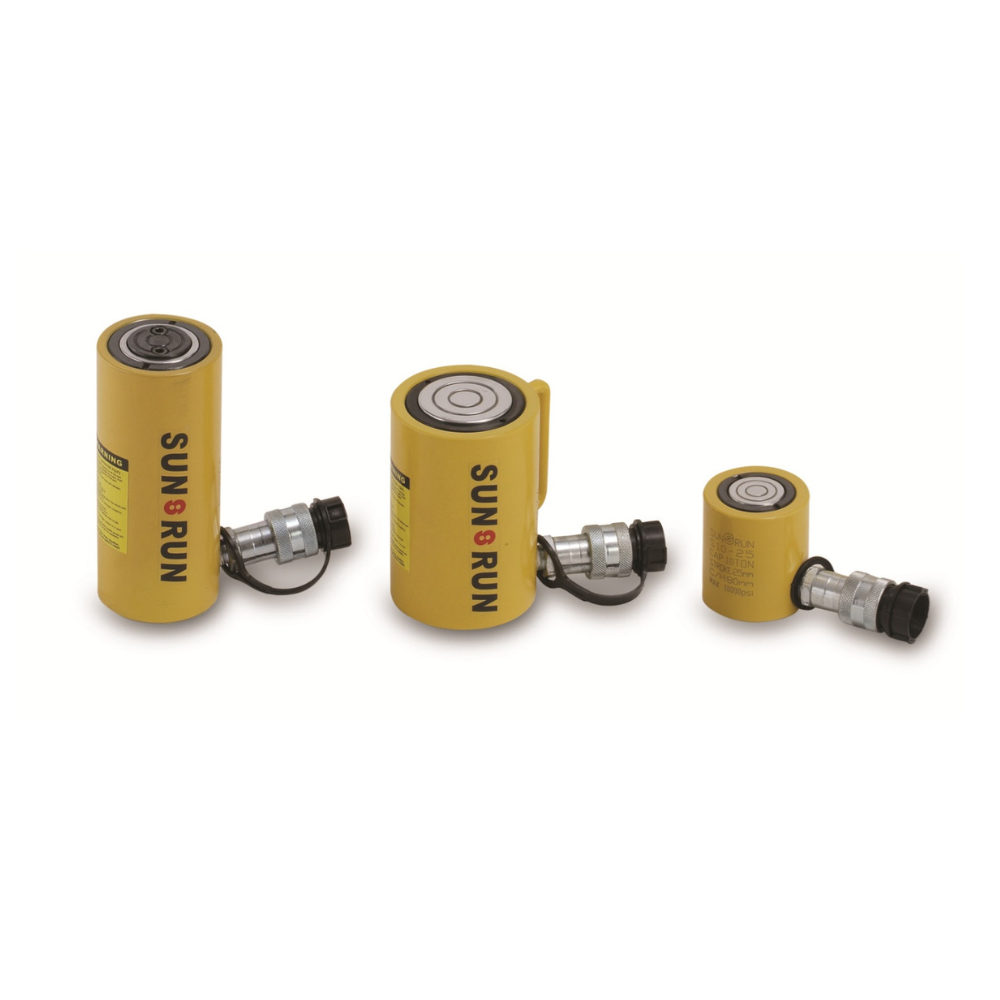

SUN RUN S Series S150-150 adalah hydraulic cylinder cap 150 ton dengan stroke 150 mm, konstruksi kokoh, tahan korosi, presisi tinggi, dan cocok untuk aplikasi industri berat.
- Model Number: S150-150 Sun Run
- Cylinder Capacity: 150 ton (1407 kN)
- Stroke: 150.0 mm
- Effective Area: 200.96 cm²
- Oil Capacity: 3014.4 cm³
- Collapsed Height: 300.0 mm
- Extended Height: 450.0 mm
- Outside Diameter: 215.0 mm
- Cylinder Bore Diameter: 160.0 mm
- Plunger Diameter: 115.0 mm
- Base to Advance Port: 50.0 mm
- Saddle Diameter: 99 mm
- Single-Acting Cylinders – General Features
- Designed for use in all positions.
- Hard chrome-plated plunger and barrel interior resist wear and corrosion, providing tighter sealing and extended cylinder life.
- Maximum-sized springs ensure faster piston return and increased spring life.
- Special soft ring reduces wear caused by off-center loads.
- Plunger wiper minimizes contaminants entering the cylinder.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for enhanced corrosion resistance and rust prevention.
- All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
