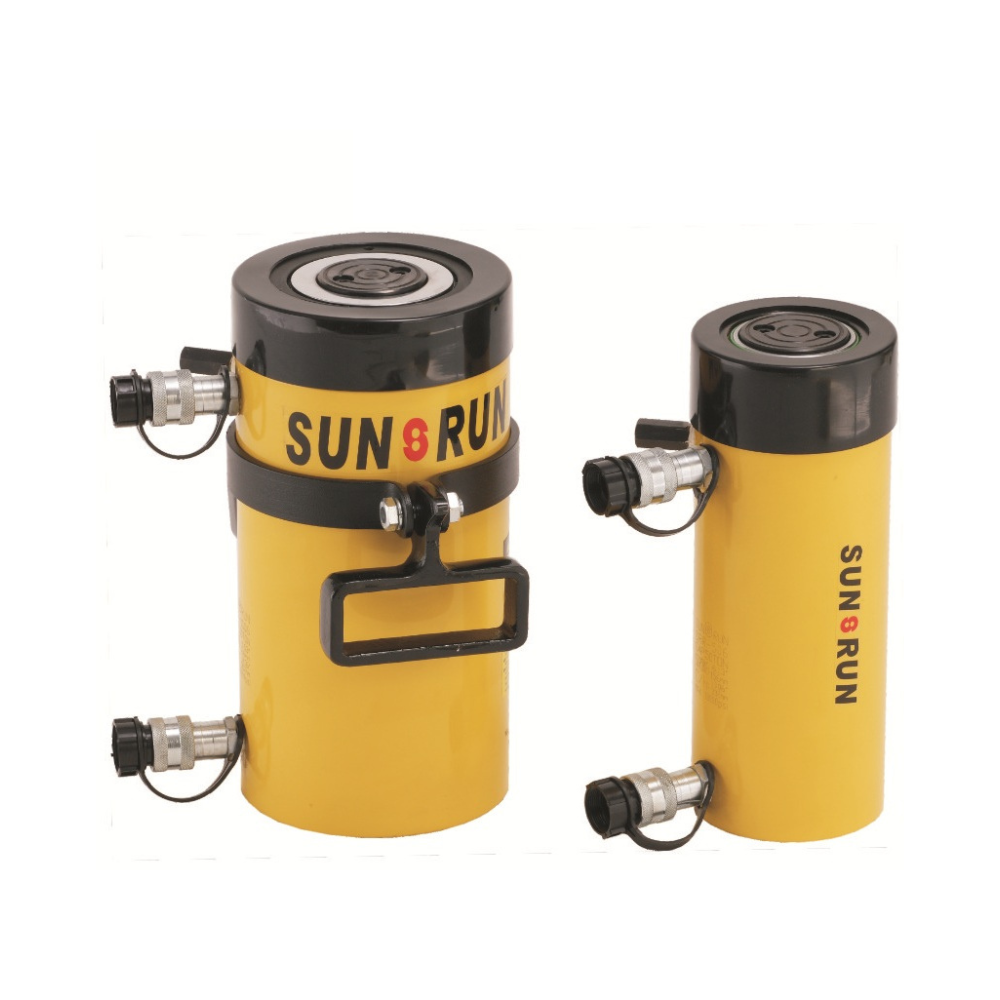

SUN RUN RSR-506 Hydraulic Cylinder Cap 50ton Stroke 156mm
10 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSR-506 Hydraulic Cylinder 50 ton, stroke 156mm, double-acting, kuat untuk push & pull. Ideal untuk konstruksi, jembatan, kapal, dan perawatan alat berat.
- Model: RSR-506 Sun Run
- Cylinder Capacity: 50 ton (498 kN)
- Stroke: 156 mm
- Max. Cylinder Capacity (Push): 498 kN
- Max. Cylinder Capacity (Pull): 150 kN
- Cylinder Effective Area (Push): 71.2 cm²
- Cylinder Effective Area (Pull): 21.5 cm²
- Oil Capacity (Push): 1111 cm³
- Oil Capacity (Pull): 335 cm³
- Collapsed Height: 331 mm
- Extended Height: 487 mm
- Outside Diameter: 127 mm
- Cylinder Bore Diameter: 95.2 mm
- Plunger Diameter: 79.5 mm
- Base to Advance Port: 28 mm
- Top to Retract Port: 76 mm
- Saddle Diameter: 71 mm
- Saddle Protrusion from Plunger: 2 mm
- Plunger Internal Thread: 1″-12 in
- Plunger Thread Length: 25 mm
- Collar Thread: 5″-12 in
- Collar Thread Length: 50 mm
- Bolt Circle Diameter: – mm
- Thread: – in
- Thread Depth: – mm
- Hydraulic Cylinder Features:
- Double-acting design allows for both pull and push forces.
- Relief valves protect against over-pressurizing.
- Collar threads, plunger threads, and base mounting holes for easy fixturing (see chart).
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring for piston blow-out protection.
- Powder coat finish for increased corrosion resistance and anti-rust protection.
- Comes with SQB-3/8UF female coupler & dust cap.
- RSR series cylinders are perfect for bridge lifting, building reconstruction, shipyard, utility, and mining equipment maintenance.
- When precise power and positioning of heavy loads are needed, RSR series are the best solution.
