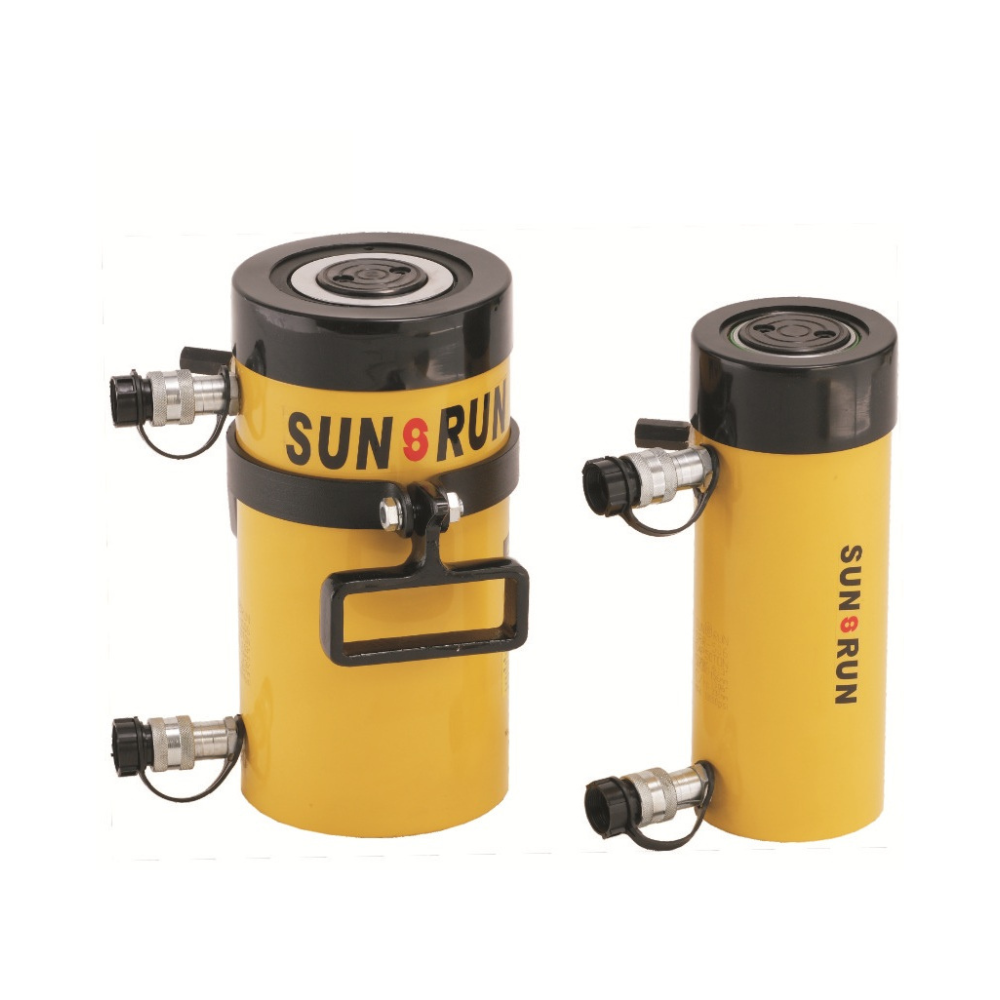

SUN RUN RSR-5006 Hydraulic Cylinder 500 ton dengan stroke 153 mm, tipe double-acting untuk dorong & tarik presisi. Kuat, tahan korosi, ideal untuk beban berat industri.
- Model: RSR-5006 Sun Run
- Cylinder Capacity: 520 ton (5108 kN)
- Stroke: 153 mm
- Max. Cylinder Capacity (Push): 5108 kN
- Max. Cylinder Capacity (Pull): 2838 kN
- Cylinder Effective Area (Push): 729.7 cm²
- Cylinder Effective Area (Pull): 405.4 cm²
- Oil Capacity (Push): 11,164 cm³
- Oil Capacity (Pull): 6,203 cm³
- Collapsed Height: 577 mm
- Extended Height: 730 mm
- Outside Diameter: 397 mm
- Cylinder Bore Diameter: 304.8 mm
- Plunger Diameter: 203.2 mm
- Base to Advance Port: 120 mm
- Top to Retract Port: 152 mm
- Saddle Diameter: 203 mm
- Saddle Protrusion from Plunger: 28 mm
- Plunger Internal Thread: 3¼”-12 in
- Plunger Thread Length: 108 mm
- Collar Thread: 15⅝”-8 in
- Collar Thread Length: 79 mm
- Bolt Circle Diameter: 203 mm
- Thread: 1¾”-5 in
- Thread Depth: 54 mm
- Type: Double-Acting Cylinder
- Double-acting design allows both push and pull force.
- Relief valves protect against over-pressurization.
- Collar threads, plunger threads, and base mounting holes for easy fixturing (see chart).
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring provides piston blow-out protection.
- Powder-coated finish for increased corrosion resistance and anti-rust performance.
- Comes with SQB-3/8UF female coupler and dust cap.
- RSR series cylinders are ideal for bridge lifting, building reconstruction, shipyards, utilities, and mining equipment maintenance.
- As applications require powerful force and precise positioning of heavy loads, RSR series cylinders are the best solution.
