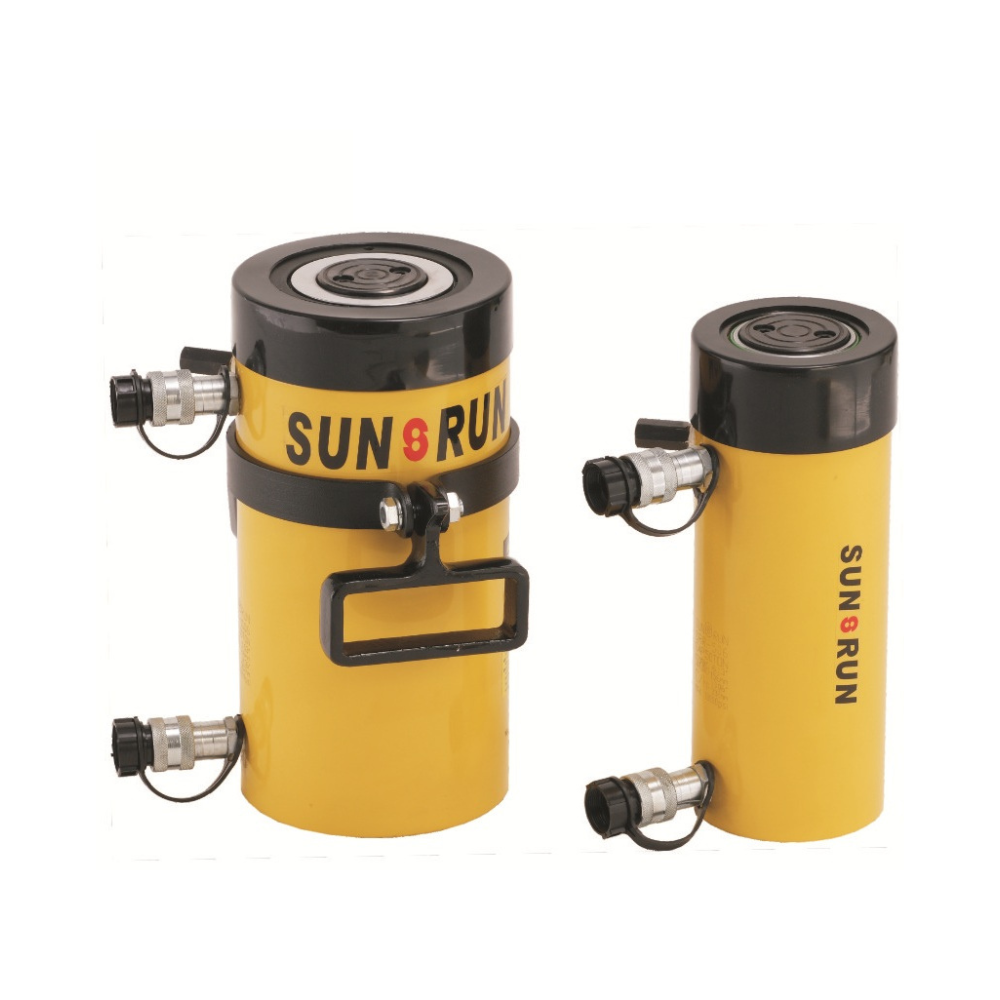

SUN RUN RSR-15013 Hydraulic Cylinder Cap 150ton Stroke 156mm
7 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSR-15013 Hydraulic Cylinder 140 ton, stroke 333mm, double-acting, kuat untuk angkat & posisikan beban berat. Ideal untuk konstruksi, jembatan, & perawatan alat berat.
- Model Number: RSR-15013 Sun Run
- Cylinder Capacity: 140 ton (1386 kN)
- Stroke: 333 mm
- Max. Cylinder Capacity (Push): 1386 kN
- Max. Cylinder Capacity (Pull): 668 kN
- Cylinder Effective Area (Push): 198.1 cm²
- Cylinder Effective Area (Pull): 95.4 cm²
- Oil Capacity (Push): 6597 cm³
- Oil Capacity (Pull): 3177 cm³
- Collapsed Height: 563 mm
- Extended Height: 897 mm
- Outside Diameter: 203 mm
- Cylinder Bore Diameter: 158.8 mm
- Plunger Diameter: 114.3 mm
- Base to Advance Port: 49 mm
- Top to Return Port: 84 mm
- Saddle Diameter: 114 mm
- Saddle Protrusion from Plunger: 19 mm
- Plunger Internal Thread: 3³/₈”-16 in
- Plunger Thread Length: 35 mm
- Collar Thread: 8″-12 in
- Collar Thread Length: 60 mm
- Bolt Circle Diameter: 158 mm
- Thread: ³/₄”-16 in
- Thread Depth: 28 mm
- Double-Acting Cylinders
- Double-acting design allows for both push and pull forces.
- Relief valves protect against over-pressurizing.
- Collar threads, plunger threads, and base mounting holes for easy fixturing. (See chart)
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring for piston blow-out protection.
- Powder coat finish for increased corrosion resistance and anti-rust.
- Comes with SQB-3/8UF female coupler & dust cap.
- RSR series cylinders are ideal for bridge lifting, building reconstruction, shipyard, utility, and mining equipment maintenance.
- Whenever power and precise positioning of heavy loads are needed, RSR series are the best solution.
