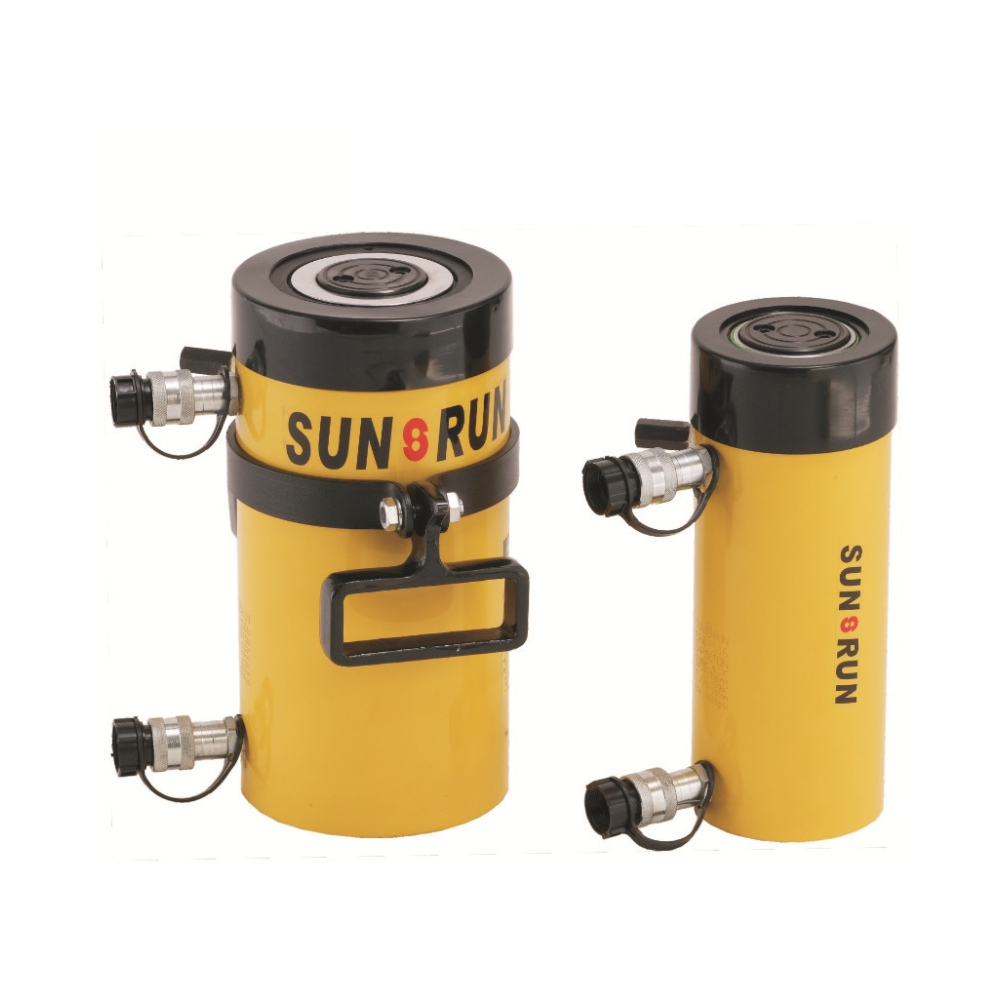

SUN RUN RSR-1012 Hydraulic Cylinder Cap 10ton Stroke 305mm
47 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSR-1012 Hydraulic Cylinder, kapasitas 10 ton dengan stroke 305 mm, ideal untuk angkat dan dorong beban berat. Desain kuat, efisien, dan presisi untuk berbagai aplikasi industri.
- Model: RSR-1012
- Cylinder Capacity: 10 ton (101 kN)
- Stroke: 305 mm
- Max. Cylinder Capacity (Push): 101 kN
- Max. Cylinder Capacity (Pull): 33 kN
- Cylinder Effective Area (Push): 14.5 cm²
- Cylinder Effective Area (Pull): 4.8 cm²
- Oil Capacity (Push): 442 cm³
- Oil Capacity (Pull): 147 cm³
- Collapsed Height: 457 mm
- Extended Height: 762 mm
- Outside Diameter: 73 mm
- Cylinder Bore Diameter: 42.9 mm
- Plunger Diameter: 34.9 mm
- Base to Advance Port: 36 mm
- Top to Retract Port: 57 mm
- Saddle Diameter: 35 mm
- Saddle Protrusion from Plunger: 6 mm
- Plunger Internal Thread: 1″-8 in
- Plunger Thread Length: 25 mm
- Collar Thread: 2 / 1 4″-14 in
- Collar Thread Length: 26 mm
- Bolt Circle Diameter: – mm
- Thread: – in
- Thread Depth: – mm
