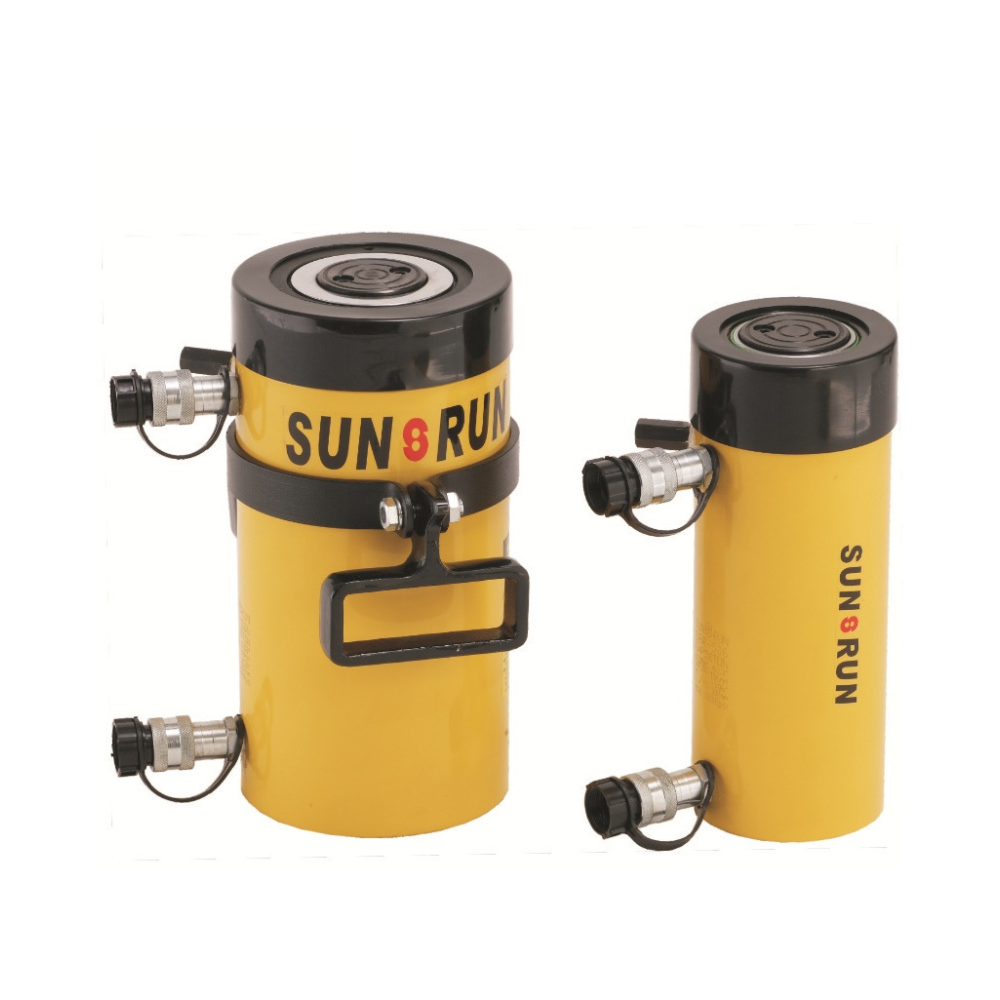

SUN RUN RSR-1006 Hydraulic Cylinder Cap 100T Stroke 168mm dirancang untuk beban berat hingga 95 ton. Double-acting, presisi tinggi, tahan korosi, ideal untuk industri, konstruksi, dan maintenance alat berat.
- Model: RSR-1006
- Cylinder Capacity: 95 ton (933 kN)
- Stroke: 168 mm
- Max. Cylinder Capacity (Push): 933 kN
- Max. Cylinder Capacity (Pull): 435 kN
- Cylinder Effective Area (Push): 133.3 cm²
- Cylinder Effective Area (Pull): 62.2 cm²
- Oil Capacity (Push): 2238 cm³
- Oil Capacity (Pull): 1045 cm³
- Collapsed Height: 357 mm
- Extended Height: 525 mm
- Outside Diameter: 177 mm
- Cylinder Bore Diameter: 130.3 mm
- Plunger Diameter: 95.2 mm
- Base to Advance Port: 38 mm
- Top to Retract Port: 71 mm
- Saddle Diameter: 76 mm
- Saddle Protrusion from Plunger: 3 mm
- Plunger Internal Thread: 1¾”-12 UN
- Plunger Thread Length: 35 mm
- Collar Thread: 6⅞”-12 UN
- Collar Thread Length: 50 mm
- Bolt Circle Diameter: 139 mm
- Mounting Thread: ¾”-10 UN
- Thread Depth: 25 mm
- Double-acting design allows both push and pull forces.
- Relief valves protect against over-pressurization.
- Collar threads, plunger threads, and base mounting holes allow easy fixturing (see chart).
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring provides piston blow-out protection.
- Powder-coated finish enhances corrosion resistance and rust prevention.
- Comes with SQB-3/8UF female coupler and dust cap.
- RSR series cylinders are ideal for bridge lifting, building reconstruction, shipyards, utilities, and mining equipment maintenance.
- As heavy loads require power and precise positioning, RSR series cylinders are the best solution.
