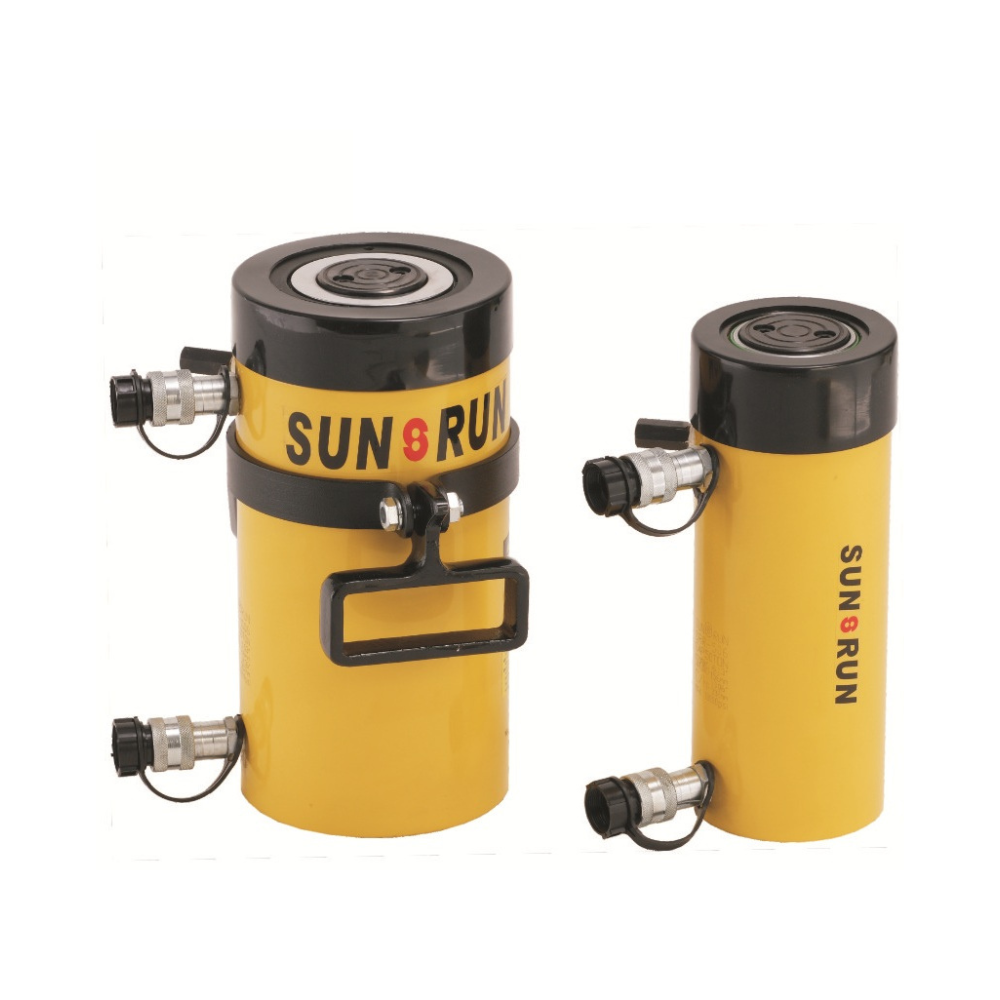

SUN RUN RSR-10013 Hydraulic Cylinder Cap 100ton Stroke 333mm
29 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN RSR-10013 Hydraulic Cylinder 100 ton, stroke 333mm, double-acting, hard chrome plunger, relief valves, ideal for heavy lifting & industrial use.
- Model: RSR-10013
- Cylinder Capacity: 95 ton (933 kN)
- Stroke: 333 mm
- Max. Cylinder Capacity (Push): 933 kN
- Max. Cylinder Capacity (Pull): 435 kN
- Cylinder Effective Area (Push): 133.3 cm²
- Cylinder Effective Area (Pull): 62.2 cm²
- Oil Capacity (Push): 4439 cm³
- Oil Capacity (Pull): 2071 cm³
- Collapsed Height: 524 mm
- Extended Height: 857 mm
- Outside Diameter: 177 mm
- Cylinder Bore Diameter: 130.3 mm
- Plunger Diameter: 95.2 mm
- Base to Advance Port: 38 mm
- Top to Retract Port: 71 mm
- Saddle Diameter: 76 mm
- Saddle Protrusion from Plunger: 3 mm
- Plunger Internal Thread: 1³/₄”-12 in
- Plunger Thread Length: 35 mm
- Collar Thread: 6⁷/₈”-12 in
- Collar Thread Length: 50 mm
- Bolt Circle Diameter: 139 mm
- Thread: ³/₄”-10 in
- Thread Depth: 25 mm
- Double-Acting Cylinders
- Double-acting design allows for both pull and push forces.
- Relief valves protect against over-pressurizing.
- Collar threads, plunger threads, and base mounting holes allow easy fixturing. (See chart)
- Hard chrome-plated plunger resists wear and corrosion.
- Stop ring provides piston blow-out protection.
- Powder coat finish increases corrosion resistance and anti-rust properties.
- Comes with SQB-3/8UF female coupler & dust cap.
- RSR series cylinders are perfect for bridge lifting, building reconstruction, shipyard, utility, and mining equipment maintenance.
- As precise power and positioning of heavy loads are needed, RSR series are the best solution.
