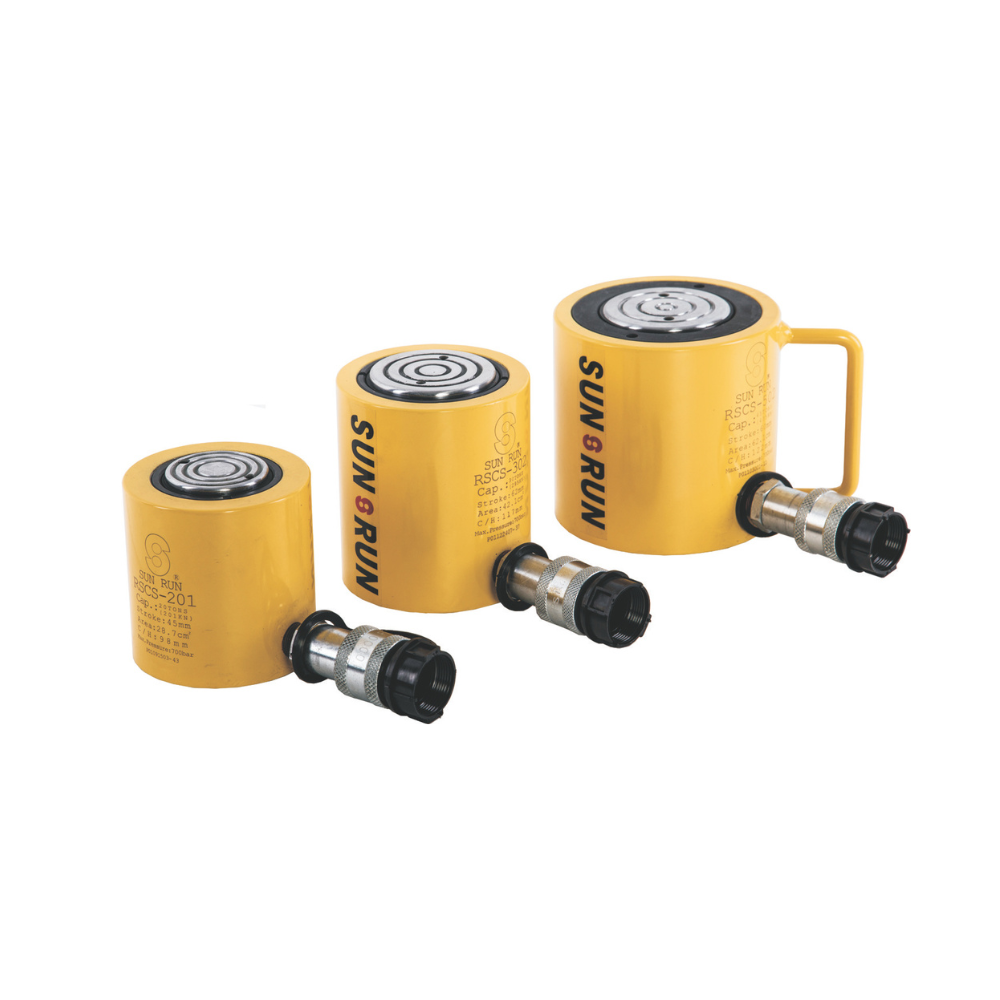

SUN RUN RSCS-502 Hydraulic Cylinder Cap 45ton Stroke 60mm

Name: SUN RUN RSCS-502 Hydraulic Cylinder Cap 45ton Stroke 60mm
Brand: Sun Run
SKU: RSCS-502
Price: 99 IDR
Availability: InStock

50 orang sedang melihat produk ini

Harga aslinya adalah: Rp100.Harga saat ini adalah: Rp99.

SUN RUN RSCS-502 Hydraulic Cylinder Cap 45 ton dengan stroke 60 mm, desain low profile ringan untuk ruang sempit. Kuat, tahan korosi, dan andal untuk aplikasi industri berat.

Download PDF

MINTA PENAWARAN

Add to Wishlist

Spesifikasi SUN RUN RSCS-502 Hydraulic Cylinder Cap 45ton Stroke 60mm

Model Number: RSCS-502 Sun Run
Cylinder Capacity: 45 ton (435 kN)
Stroke: 60 mm
Cylinder Effective Area: 62.1 cm²
Oil Capacity: 373 cm³
Collapsed Height: 122 mm
Extended Height: 182 mm
Outside Diameter: 124 mm
Cylinder Bore Diameter: 88.9 mm
Plunger Diameter: 69.8 mm
Base to Advance Port: 23 mm
Plunger Protrusion from Base: 2 mm
Thread: M5 mm
Thread Depth: 8 mm
Bolt Circle: 39 mm
Type: Single-Acting, Low Height Cylinder
Lightweight, low-profile design for use in confined spaces, with a longer stroke than RSSM models
Grooved plunger end with threaded holes for mounting tilt saddles
Hard chrome-plated plunger and inner barrel for superior wear and corrosion resistance
Maximum-sized springs ensure faster piston return and extended spring life
Plunger wiper reduces contaminants
Stop ring provides piston blow-out protection
Powder-coated finish for enhanced corrosion resistance and rust prevention
Come with SQB-3/8UF female coupler & dust cap
