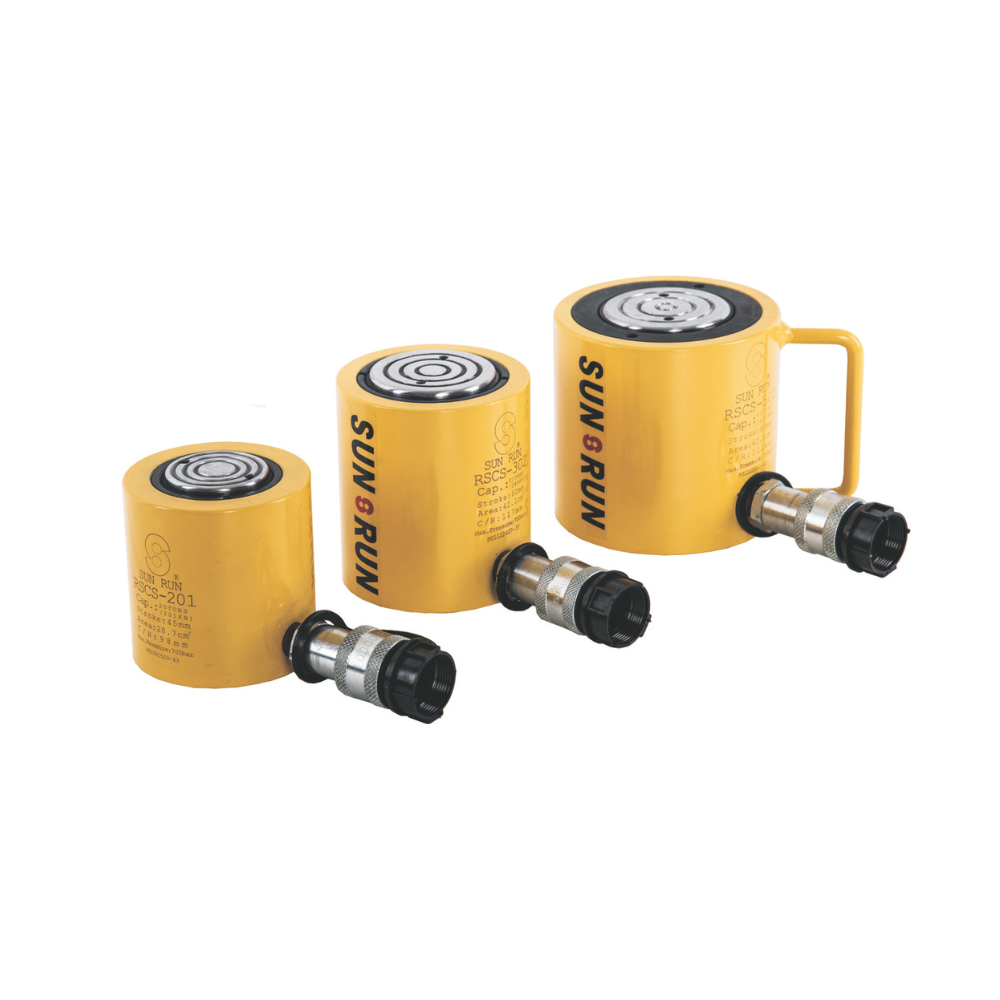

SUN RUN RSCS-302 Hydraulic Cylinder Cap 30ton Stroke 62mm

Name: SUN RUN RSCS-302 Hydraulic Cylinder Cap 30ton Stroke 62mm
Brand: Sun Run
SKU: RSCS-302
Price: 99 IDR
Availability: InStock

49 orang sedang melihat produk ini

Harga aslinya adalah: Rp100.Harga saat ini adalah: Rp99.

Spesifikasi SUN RUN RSCS-302 Hydraulic Cylinder Cap 30ton Stroke 62mm

Model Number: RSCS-302
Cylinder Capacity: 30 ton (295 kN)
Stroke: 62 mm
Cylinder Effective Area: 42.1 cm²
Oil Capacity: 261 cm³
Collapsed Height: 177 mm
Extended Height: 179 mm
Outside Diameter: 101 mm
Cylinder Bore Diameter: 73.2 mm
Plunger Diameter: 66.5 mm
Base to Adv. Port: 19 mm
Plunger Protrusion from Base: 3 mm
Thread: M5 mm
Thread Depth: 8 mm
Bolt Circle: 39 mm
Type: Single-Acting, Low Height Cylinder
Lightweight, low-profile design for use in confined spaces, with a higher stroke than RSSM series
Grooved plunger end with threaded holes for mounting tilt saddles
Hard chrome-plated plunger and inner barrel for wear and corrosion resistance
Oversized springs for faster piston return and longer spring life
Plunger wiper reduces contamination
Stop ring for piston blow-out protection
Powder-coated finish for enhanced corrosion resistance and anti-rust protection
Come with SQB-3/8UF female coupler & dust cap
