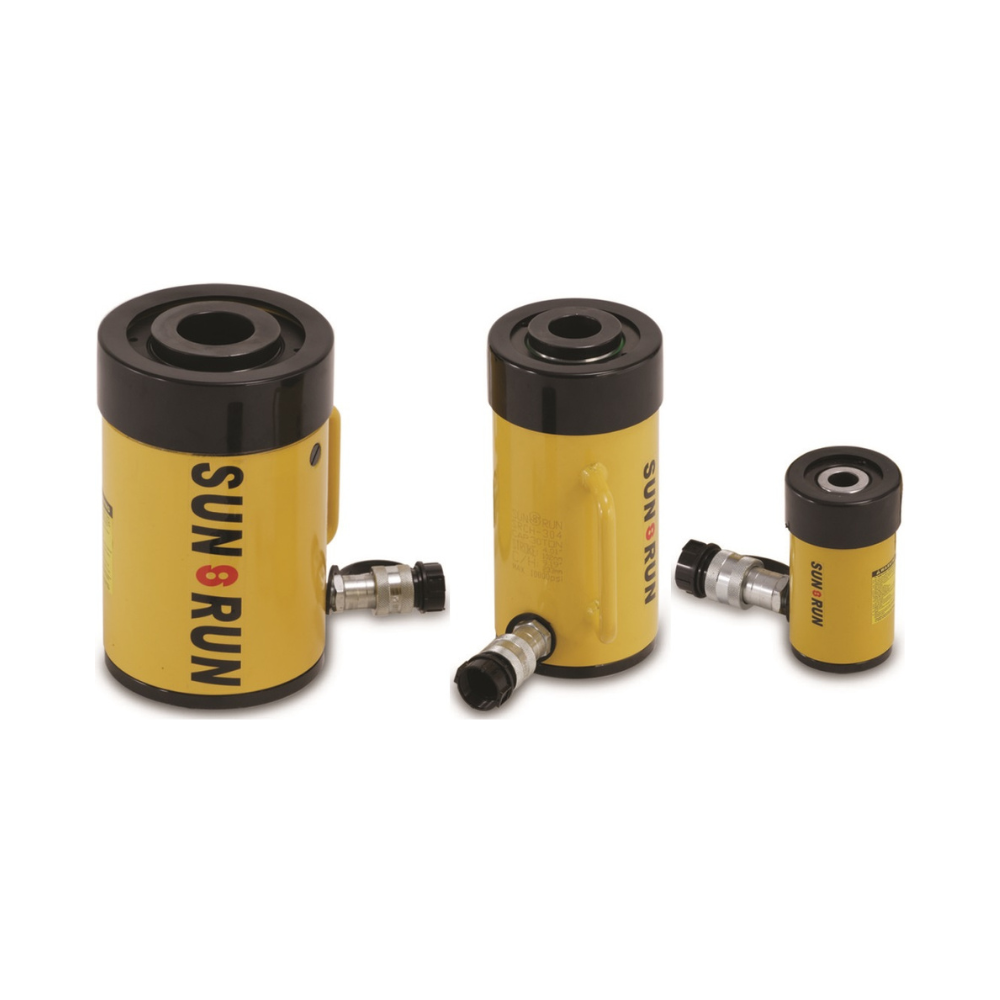

SUN RUN RSCH-204 Hydraulic Cylinder Cap 20 ton dengan stroke 102 mm, desain hollow plunger low profile untuk aplikasi tarik & dorong. Kuat, presisi, tahan aus, ideal ruang sempit.
- Model : RSCH-204 Sun Run
- Cylinder Capacity: 20 ton (215 kN)
- Stroke: 102 mm
- Cylinder Effective Area: 30.7 cm²
- Oil Capacity: 311 cm³
- Collapsed Height: 242 mm
- Extended Height: 344 mm
- Outer Diameter: 98 mm
- Cylinder Bore Diameter: 73.1 mm
- Plunger Diameter: 54.1 mm
- Cylinder Base to Advance Port: 19 mm
- Saddle Diameter: 54 mm
- Saddle Protrusion from Plunger: 6.9 mm
- Plunger Internal Thread: 1⁹⁄₁₆”-16 in
- Plunger Thread Length: 19 mm
- Collar Thread: 3⅞”-12 in
- Collar Thread Length: 38 mm
- Center Hole Diameter: 26.9 mm
- Bolt Circle: 82.6 mm
- Thread: 3/8″-16 UNC
- Thread Depth: 9.4 mm
- Hydraulic Cylinder
- Single-Acting, Hollow Plunger Cylinders
- Hollow plunger design allows for both pulling and pushing applications.
- Low profile with longer strokes to fit into the tightest spaces.
- Withstands full “dead-end” loads.
- Collar threads allow easy fixturing and include protective caps.
- Special center tube protects the plunger and cylinder interior, increasing product life.
- Hard chrome-plated plunger and barrel interior resist wear and corrosion.
- Spring return mechanism.
- Wiper rings protect the piston and bore tube from contamination.
- Stop rings provide piston blow-out protection.
- Powder-coat finish for enhanced corrosion and rust resistance.
- Comes with SQB-3/8UF female coupler and dust cap.
