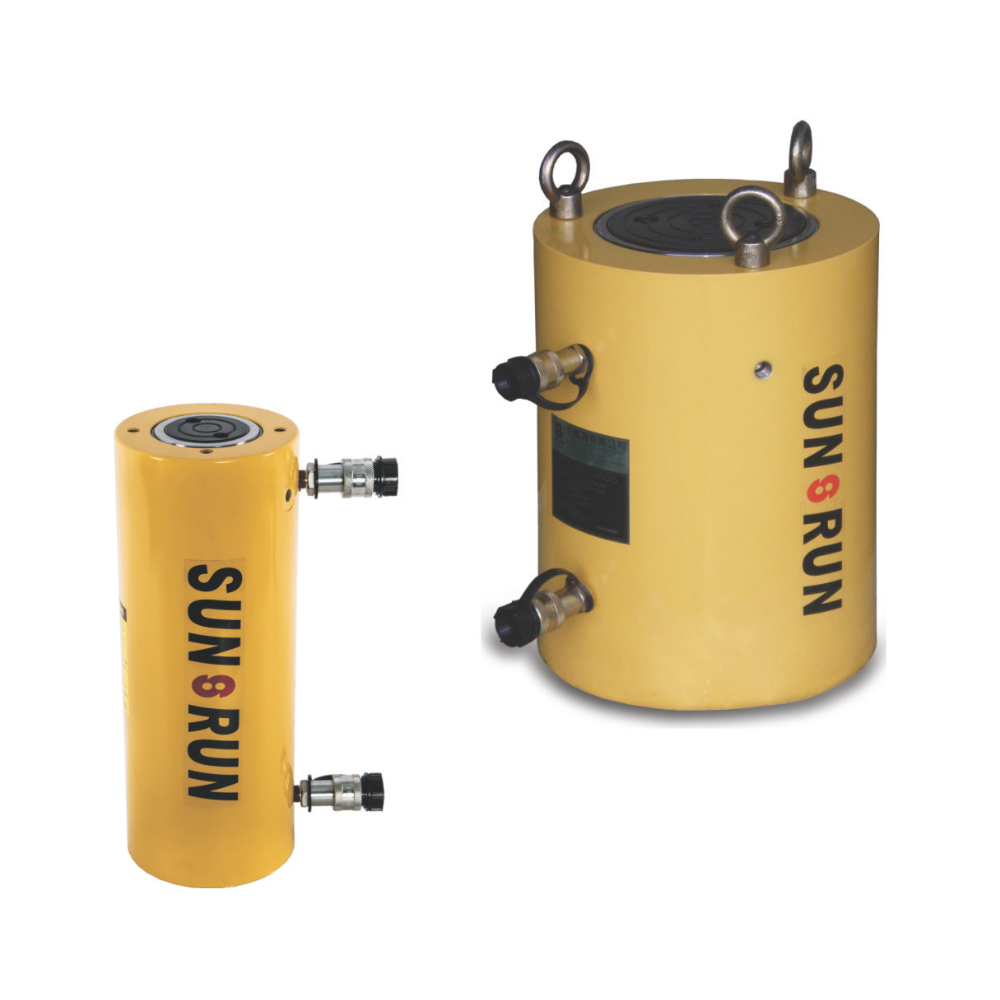

Hydraulic Cylinder SUN RUN CSLRG-2006 berkapasitas 200 ton dengan stroke 150mm, menghadirkan tenaga dorong kuat untuk aplikasi industri berat. Tahan lama dan andal.
- Model: CSLRG-2006 Sun Run
- Cylinder Capacity: 200 ton (1861 kN)
- Stroke: 150 mm
- Max Cylinder Capacity (Push): 1861 kN
- Max Cylinder Capacity (Pull): 889 kN
- Cylinder Effective Area (Push): 265.9 cm²
- Cylinder Effective Area (Pull): 127.0cm²
- Oil Capacity (Push): 3989 cm³
- Oil Capacity (Pull): 1905 cm³
- Collapsed Height: 316 mm
- Extended Height: 466 mm
- Outside Diameter: 235 mm
- Cylinder Bore Diameter: 184.0 mm
- Plunger Diameter: 133.1 mm
- Base to Advance Port: 67 mm
- Top to Retract Port: 56 mm
- Standard Saddle Diameter: 113 mm
- Saddle Protrusion from Plunger: 1 mm
- Depth of Plunger Hole: 24 mm
- Bolt Circle Diameter: 165 mm
- Thread: M12 mm
- Thread Depth: 22 mm
- Single-Acting, Spring Return Collar Thread Cylinders Features:
- Equipped with collar thread and base holes (on most models) for greater mounting flexibility.
- Equipped with inner plunger thread (5 ton to 30 ton models) for enhanced fixture design options.
- Bronze alloy plunger bearing minimizes scoring from off-center loads.
- Hard chrome-plated plunger resists wear and corrosion.
- Hard chrome-plated inner barrel wall for increased wear and corrosion resistance in high-humidity environments.
- Wiper seals prevent dirt ingress.
- Stop-ring prevents plunger blow-out and withstands full “dead-end” load.
- Powder-coated finish for improved corrosion protection.
- Equipped with a plastic cap to protect collar threads.
- Comes with SQB-3/8UF female coupler & dust cap.
