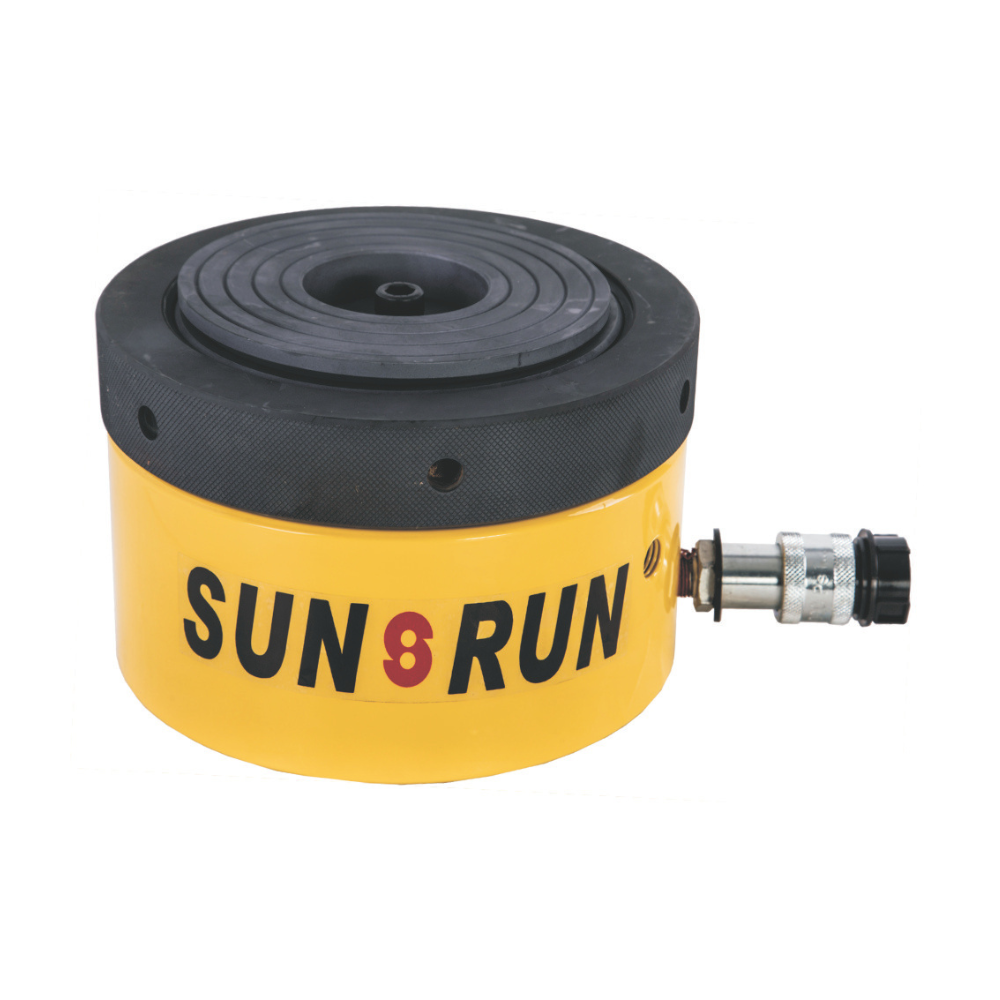

SUN RUN CSLP-1602 Hydraulic Cylinder Cap 160ton Stroke 45mm
44 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN CSLP-1602 Hydraulic Cylinder 160 ton, stroke 45mm, low-height design, safety lock, tilt saddle, powder-coated, ideal for confined spaces & vertical lifting.
- Model Number: CSLP-1602 Sun Run
- Cylinder Capacity: 160 ton (1619 kN)
- Stroke: 45 mm
- Cylinder Effective Area: 231.3 cm²
- Oil Capacity: 1040 cm³
- Collapsed Height: 148 mm
- Extended Height: 193 mm
- Outside Diameter: 220 mm
- Cylinder Bore Diameter: 171.6 mm
- Plunger Diameter: Tr171x6 mm
- Base to Advance Port: 27 mm
- Saddle Diameter: 160 mm
- Saddle Protrusion from Plunger: 9 mm
- Saddle Max Tilt Angle: 5°
- Lock Nut Height: 40 mm
- Type: Single-Acting, Low Height, Lock Nut Cylinder
- Low height design for use in confined spaces.
- Special coating on thread, piston, and lock ring to prevent seizing over long periods.
- Safety lock ring provides mechanical load support even with hydraulic pressure released.
- Tilt saddle to minimize off-center load.
- Overflow port to prevent over-stroke.
- Red indicator line warns operator when cylinder reaches full stroke.
- Load return type — for vertical lifting only.
- Powder-coated finish for better corrosion resistance.
- Connection: All cylinders are equipped with SQB-3/8UF female coupler & dust cap.
