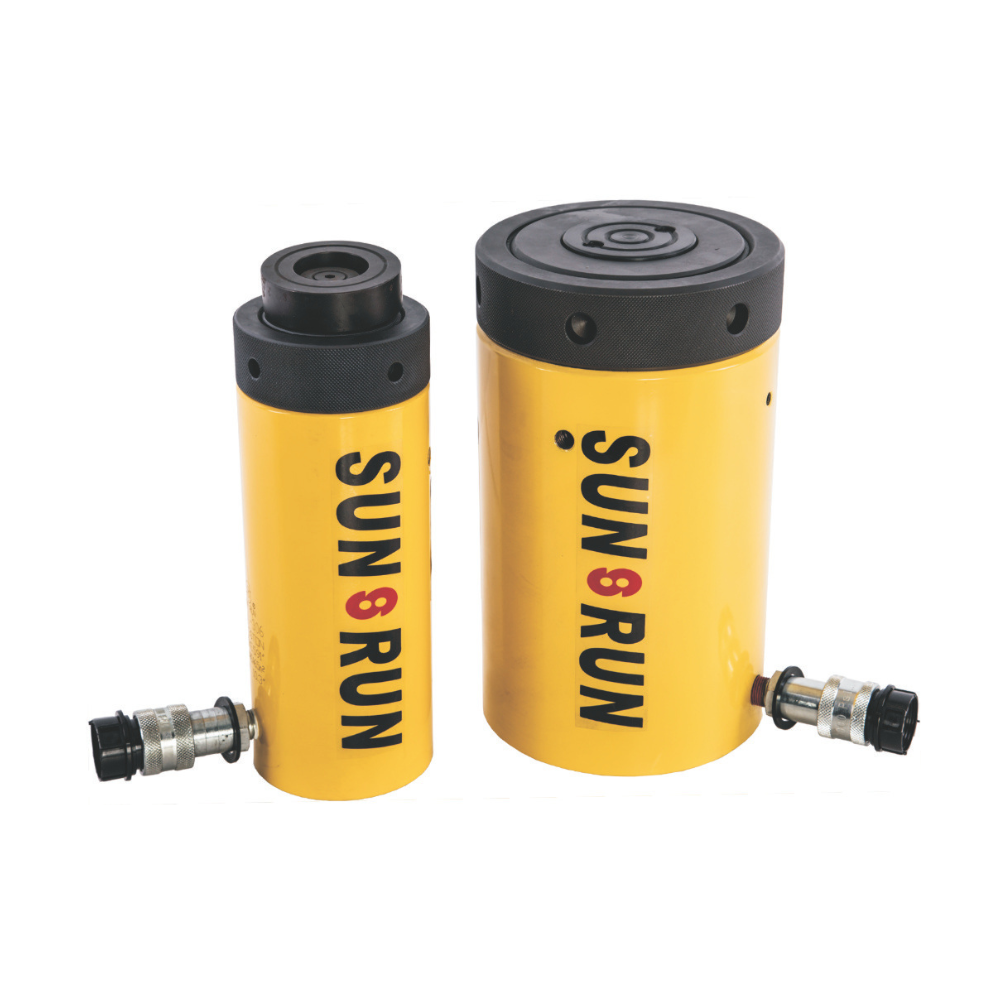

SUN RUN CSLL-1506 Hydraulic Cylinder Cap 150ton Stroke 150mm
41 orang sedang melihat produk ini
Harga aslinya adalah: Rp100.Rp99Harga saat ini adalah: Rp99.
SUN RUN CSLL-1506 Hydraulic Cylinder 150 ton, 150mm stroke. Single-acting, safety lock nut, hard chrome barrel, corrosion-resistant, complete with coupler & dust cap.
- Model Number: CSLL-1506 Sun Run
- Cylinder Capacity: 150 ton (1390 kN)
- Stroke: 150 mm
- Effective Area: 198.6 cm²
- Oil Capacity: 2979 cm³
- Collapsed Height: 309 mm
- Extended Height: 459 mm
- Outside Diameter: 205 mm
- Bore Diameter: 159.0 mm
- Plunger Diameter (threaded): Tr159x6 mm
- Base to Advance Port: 39 mm
- Standard Saddle Diameter: 130 mm
- Saddle Protrusion from Plunger: 2 mm
- Depth of Plunger Hole: 25 mm
- Lock Nut Height: 44 mm
- Single-Acting, High-Tonnage, Lock Nut Cylinder
- Hard chrome-plated barrel interior resists wear and corrosion
- Safety lock nut for mechanical load holding
- Interchangeable, hardened grooved saddles included as standard
- Single-acting load return
- Overflow port functions as a stroke limiter
- Special coating on piston and lock nut enhances corrosion and abrasion resistance
- Powder coat finish for improved corrosion resistance and anti-rust protection
- Come with SQB-3/8UF female coupler & dust cap
